Details
Characteristics
| range of product | Harmony iPC | |
|---|---|---|

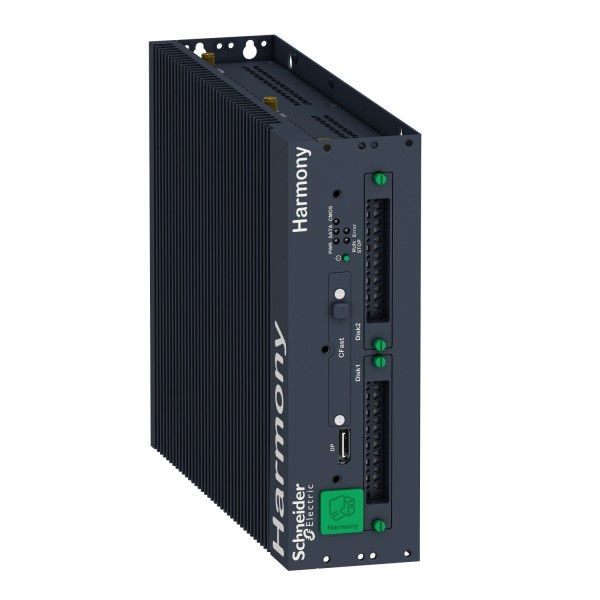

| product or component type | Modular box PC | |
| device short name | Modular BOX PC Performance | |
| chipset type | Intel QM87 | |
| free slots | 2 Internal SATA HDD/SSD with slide-in HMIYMADSDD1 to mount . hot swap RAID with Intel Rapid Storage Technology1 CFast1 mSATA | |
| video controller type | Intel HD Graphics 5000 | |
| operating system | Windows 10 IoT Enterprise 64 bit (switched from Windows 8.1 in Q1 2018)multi-language | |
| software package | Node-RED and system nodes restore IIoT Wiring Operating System RestoreMcAfee white listing installer cyber security license not includedEcoStruxture secure connect advisor annual subscription cyber security license not includedEcoStruxure Operator Terminal Expert run time HMI license not includedEcoStruxure machine SCADA expert run time HMI/SCADA on configured offer onlyEcoStruxure augmented operator advisor server augmented operator license not included |
| range compatibility | Modular Display HMIDMIDisplay | |
|---|---|---|
| accessory / separate part destination | PC panel on HMIDM modular display | |
| mounting location | Book mountingWall mountingFlat mounting | |
| processor name | Intel Core i7 4650U 1.7 GHz turbo boost at 3.3 GHz | |
| data storage equipment | 500 GB enterprise hard disk | |
| memory description | 8 GB RAM DDR3 internal (not expandable)512 kB MRAM internal | |
| number of slots | 2 slot(s) for mini PCI Express full-size | |
| display resolution | 3200 x 2000 pixels at 60 Hz | |
| watchdog timer | 1…255 ms | |
| type of cooling | FanlessFan required to mount PCI/PCIe cards above 3 W | |
| electrical connection | Screw connector, connector type: pin, 1 way, circuit application: ground - location: bottomConnector, connector type: SMA, 3 ways - location: top | |
| integrated connection type | Display port with 1 on bottomDisplay port with 1 on frontEthernet with 2 RJ45 I210, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 supportedCOM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 on bottomUSB 2.0 port with 2 USB type A, transmission rate: 480 Mbit/s on bottomUSB 3.0 port with 2 USB type A, transmission rate: 5 Gbit/s on bottomTPM connector Ver 1.2 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard | |
| [Us] rated supply voltage | 24 V DC power supply100...240 V AC power supply | |
| supply voltage limits | 18…36 V | |
| inrush current | 8.9 A | |
| power consumption in W | 40.0 W (box)44.0 W (with 4:3 12" Display HMIDM6421)43.0 W (with Wide 12" Display HMIDM6521)45 W (with 4:3 15" Display HMIDM7421)46 W (with Wide 15" Display HMIDM7521)48 W (with Wide 19" Display HMIDM9521)51 W (with Wide 22" Display HMIDMA521) | |
| control type | ON/OFF button | |
| depth | 65.2 mm | |
| height | 207 mm | |
| width | 254 mm | |
| net weight | 3.1 kg | |
| number of slots available for expansion | 2 slot(s) for mini PCIe |
| standards | Class A group 1 EN 55011 EN 61000-6-4 EN 61131-2 FCC part 15 UL 61010 | |
|---|---|---|
| product certifications | CECULusCULus CSA 22-2 No 142CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01CULus HazLoc Class I Division 2 CSA 22-2 No 213ATEXCCCRCMMarine GL BridgeEACIEC Ex hazardous locations 3GD zone 2/22 | |
| quality labels | CE | |
| directives | 2006/95/EC - low voltage directive2004/108/EC - electromagnetic compatibility | |
| IP degree of protection | IP40 conforming to IEC 60529 | |
| electromagnetic compatibility | Immunity to high frequency interference conforming to IEC 61000-4Disturbing field emission class A conforming to EN 55011Conducted and radiated emissions class A conforming to EN 55022 | |
| ambient air temperature for storage | -30…70 °C conforming to IEC 60068-2-2-30…70 °C conforming to IEC 60068-2-14 | |
| relative humidity | 10…95 % non-condensing conforming to EN/IEC 60068-2-30 | |
| ambient air temperature for operation | 0…55 °C (by default) conforming to EN/IEC 60068-2-20…50 °C flat mounting conforming to EN/IEC 60068-2-20…45 °C on PCI/PCIe HMIDM modular display with HDD conforming to EN/IEC 60068-2-20…40 °C flat mounting on HDD0…40 °C flat mounting on mini PCIe0…40 °C flat mounting on PCI/PCIe0…45 °C conforming to 2 on mini PCIe HMIDM modular display conforming to EN/IEC 60068-2-2 | |
| operating altitude | 2000 m conforming to IEC 60664-1 | |
| vibration resistance | 2 gn (f = 5…500 Hz)SSD or CFast1 gn (f = 5…500 Hz)HDD |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
