Details
Characteristics
| range of product | Preventa Safety automation | |
|---|---|---|

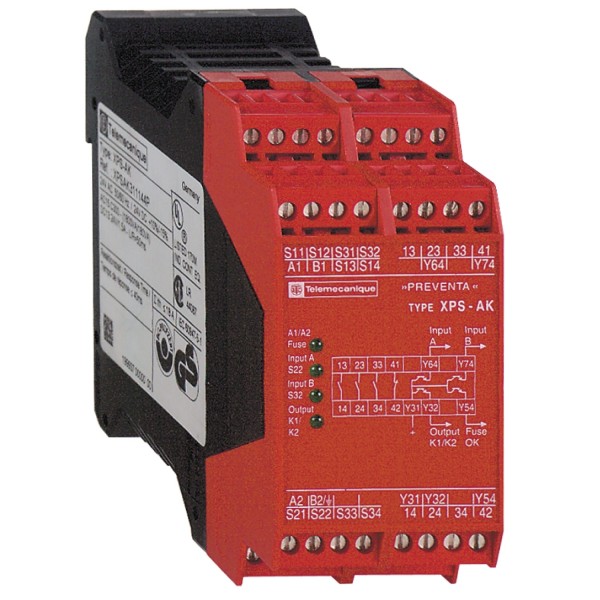

| product or component type | Preventa safety module | |
| safety module name | XPSAK | |
| safety module application | For emergency stop, switch, sensing mat/edges or safety light curtain monitoring | |
| function of module | Sensing mat and edges monitoringMultiple emergency stop monitoring 2-channel wiringProximity sensor monitoringEmergency stop monitoring 1-channel wiringMonitoring of a movable guardMonitoring of a movable guard associated with 2 switches and automatic startMonitoring of electro-sensitive protection equipment (ESPE)Emergency stop with 2 NC contacts monitoring 2-channel wiring | |
| safety level | Can reach PL e/category 4 conforming to EN/ISO 13849-1Can reach SILCL 3 conforming to EN/IEC 62061 | |
| safety reliability data | DC > 99 % conforming to EN/ISO 13849-1MTTFd = 154.5 years conforming to EN/ISO 13849-1PFHd = 7.39E-9 1/h conforming to EN/IEC 62061 | |
| type of start | Configurable | |
| connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with double bezelCaptive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel | |
| output type | Relay instantaneous opening, 3 NO circuit(s), volt-free | |
| number of additional circuits | 1 NC + 4 solid state outputs | |
| [Us] rated supply voltage | 110 V AC - 15...10 %24 V DC - 15...10 % |
| synchronisation time between inputs | 2 or 4 s depending of wiring (automatic start)Unlimited (manual start) | |
|---|---|---|
| supply frequency | 50/60 Hz | |
| maximum power consumption in VA | 6 VA AC | |
| input protection type | Internal, electronic | |
| [Uc] control circuit voltage | 24 V DC | |
| maximum line resistance | 28 Ohm | |
| breaking capacity | 180 VA holding AC-15 C300 relay output1800 VA inrush AC-15 C300 relay output | |
| breaking capacity | 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output | |
| output thermal current | 6 A per relay for relay output | |
| [Ith] conventional free air thermal current | 18 A | |
| associated fuse rating | 4 A gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 2006 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 | |
| minimum output current | 10 mA for relay output | |
| minimum output voltage | 17 V for relay output | |
| maximum response time on input open | 40 ms | |
| [Ui] rated insulation voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 | |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-14 kV overvoltage category III conforming to DIN VDE 0110 part 1 | |
| local signalling | 4 LEDs | |
| current consumption | 30 mA at 24 V AC on power supply | |
| mounting support | 35 mm symmetrical DIN rail | |
| net weight | 0.4 kg |
| standards | EN/IEC 60204-1EN 1088/ISO 14119EN/IEC 60947-5-1EN/ISO 13850 | |
|---|---|---|
| product certifications | TÜVULCSA | |
| IP degree of protection | IP20 (terminals) conforming to EN/IEC 60529IP40 (enclosure) conforming to EN/IEC 60529 | |
| ambient air temperature for operation | -10…55 °C | |
| ambient air temperature for storage | -25…85 °C |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
