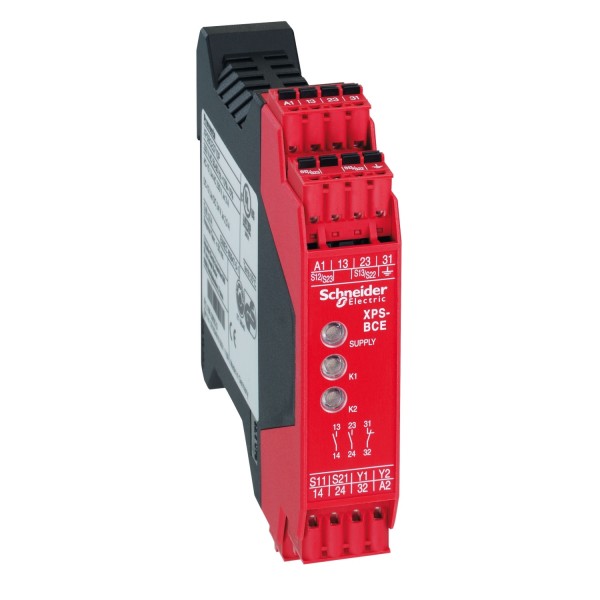

module XPSBCE - two-hand control - 24 V AC/DC

Ülevaaded: 0

Tootekood: XPSBCE3110C

Quick Overview

Saadavus: Ei saa enam tellida

286,10 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety automation
product or component type
Preventa safety module
safety module name
XPSBCE
safety module application
For electrical monitoring of two-hand control stations
function of module
Monitoring two-hand control station
safety level
Can reach PL e/category 4 conforming to EN/ISO 13849-1
Can reach SILCL 3 conforming to EN/IEC 62061
safety reliability data
DC > 99 % conforming to EN/ISO 13849-1
MTTFd = 37 years conforming to EN/ISO 13849-1
PFHd = 3E-8 1/h conforming to EN/IEC 62061
connections - terminals
Spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end
Spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end
Spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel
Spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel
Spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel
output type
Relay, 2 NO circuit(s), volt-free
number of additional circuits
1 NC
[Us] rated supply voltage
24 V AC/DC - 15...10 %
Complementary
synchronisation time between inputs
0.5 s
supply frequency
50/60 Hz
maximum power consumption in VA
4 VA
input protection type
Internal, electronic
number of inputs
1 NC + NO
input compatibility
Two-hand control conforming to EN 574/ISO 13851-III C
[Uc] control circuit voltage
24 V DC
breaking capacity
3600 VA inrush AC-15 B300 relay output
160 VA holding AC-15 B300 relay output
breaking capacity
1.5 A (DC-13) time constant: 50 ms for relay output
[Ith] conventional free air thermal current
6 A
associated fuse rating
6 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200
minimum output current
10 mA for relay output
minimum output voltage
17 V for relay output
maximum response time on input open
50 ms
[Ui] rated insulation voltage
300 V (pollution degree 2) conforming to IEC 60947-5-1
300 V (pollution degree 2) conforming to DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage
4 kV overvoltage category III conforming to IEC 60947-5-1
4 kV overvoltage category III conforming to DIN VDE 0110 part 1
local signalling
3 LEDs
mounting support
35 mm symmetrical DIN rail
net weight
0.272 kg
Environment
standards
EN 574 type III C/ISO 13851
EN/IEC 60947-5-1
EN/IEC 60204-1
product certifications
UL
CSA
BG
IP degree of protection
IP20 (terminals) conforming to EN/IEC 60529
IP40 (enclosure) conforming to EN/IEC 60529
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-25…75 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
