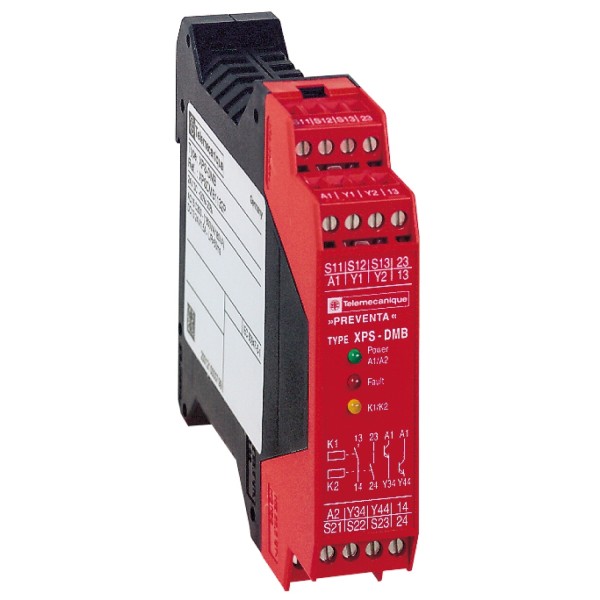

module XPSDM - 2 coded magnetic switch

Details

Main
range of product	Preventa Safety automation
product or component type	Preventa safety module
safety module name	XPSDMB
safety module application	Monitoring 2 coded magnetic switches
function of module	Coded magnetic switch monitoring
safety level	Can reach PL e/category 4 EN/ISO 13849-1 Can reach SILCL 3 EN/IEC 62061
safety reliability data	MTTFd = 83.1 years EN/ISO 13849-1 DC > 99 % EN/ISO 13849-1 PFHd = 3.92E-9 1/h EN/IEC 62061
[Us] rated supply voltage	24 V DC - 20...20 %
output type	Relay, 2 NO, volt-free
number of additional circuits	2 solid state outputs

Complementary
synchronisation time between inputs	< 0.5 s
maximum power consumption in W	2,5 W
input protection type	Internal, electronic
[Uc] control circuit voltage	28 V DC
maximum line resistance	100 Ohm
breaking capacity	180 VA holding AC-15 C300 relay output 1800 VA inrush AC-15 C300 relay output
breaking capacity	1,5 A 24 V DC-13)50 ms relay output
output thermal current	6 A per relay relay output
[Ith] conventional free air thermal current	12 A
associated fuse rating	4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 6 A fast blow relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
minimum output current	10 mA relay output
minimum output voltage	17 V relay output
maximum response time on input open	20 ms
[Ui] rated insulation voltage	300 V 2)IEC 60947-5-1 300 V 2)DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage	4 kV III IEC 60947-5-1 4 kV III DIN VDE 0110 part 1
local signalling	3 LEDs
connections - terminals	Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
current consumption	8 mA 28 V DC on power supply
mounting support	35 mm symmetrical DIN rail
net weight	0,25 kg

Environment
standards	EN/IEC 60204-1 EN 1088/ISO 14119 EN/IEC 60947-5-1
product certifications	UL CSA TÜV
IP degree of protection	IP20 terminals)EN/IEC 60529 IP40 enclosure)EN/IEC 60529
ambient air temperature for operation	-10…55 °C
ambient air temperature for storage	-25…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
