Müüdavad tooted
| range of product | Preventa Safety automation | |
|---|---|---|

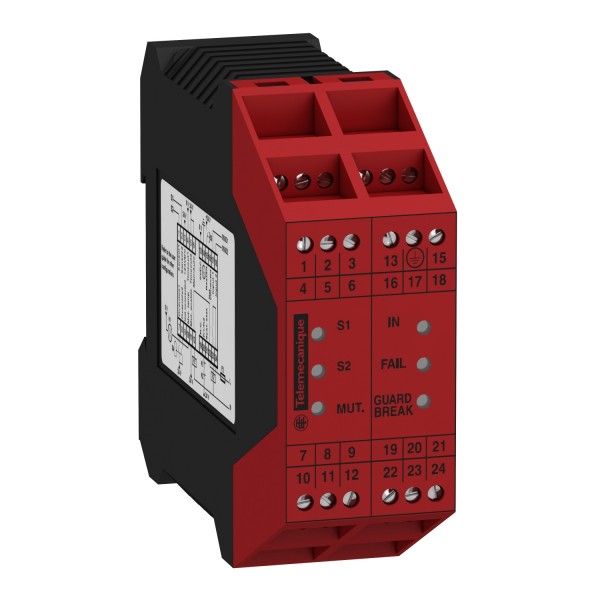

| product or component type | Preventa safety module | |
| safety module name | XPSLCM | |
| safety module application | For the muting function of type 2 and type 4 safety light curtains monitored | |
| function of module | Muting | |
| safety level | Can reach PL = e with the appropriate control system and correctly wired EN/ISO 13849-1Can reach category 4 with the appropriate control system and correctly wired EN/ISO 13849-1Can reach SILCL 3 with the appropriate control system and correctly wired EN/IEC 62061 | |
| safety reliability data | PFHd = 6.42E-9...5.03E-8 1/h EN/IEC 62061B10d = 800000 EN/ISO 13849-1MTTFd = 26...100 years EN/ISO 13849-1DC = 96.2...98.9 % EN/ISO 13849-1 | |
| synchronisation time between inputs | 4 s muting | |
| connections - terminals | Screw terminal | |
| output type | 2 relay, 2 A 24 V | |
| number of additional circuits | 1 solid state PNP (NO), 100 mA status 24 V1 solid state PNP (NO), 20,8…208 mA lamp 24 V | |
| [Us] rated supply voltage | 24 V DC - 20...20 % |
| muting maximum duration | 30 s or unlimited | |
|---|---|---|
| marking | CE | |
| maximum power consumption in W | 5 W | |
| maximum number of controlled devices | 1 | |
| number of inputs | 2 per muting function) | |
| sensor power supply | 24 V | |
| maximum sensor supply current | 10 mA | |
| input compatibility | Through beam photoelectric sensor dark-on operate(PNP)Polarised reflex photoelectric sensorReflex photoelectric sensor | |
| maximum response time on input open | 20 ms | |
| [Ui] rated insulation voltage | 300 VEN 50178 | |
| [Uimp] rated impulse withstand voltage | 4 kV II EN 50178 | |
| local signalling | 6 LEDs | |
| mounting support | 35 mm symmetrical DIN rail | |
| depth | 114,5 mm | |
| height | 99 mm | |
| width | 35 mm | |
| net weight | 0,15 kg |
| standards | EN/ISO 13849-1EN/IEC 62061 | |
|---|---|---|
| product certifications | TÜVCULus | |
| IP degree of protection | IP2x IEC 60529 | |
| ambient air temperature for operation | 0…55 °C | |
| ambient air temperature for storage | -25…70 °C |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| Ilma SVHC REACh-ta | Jah | |
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Mürgiste raskemetallideta | Jah | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil |
| Garantii | 18 months |
|---|
