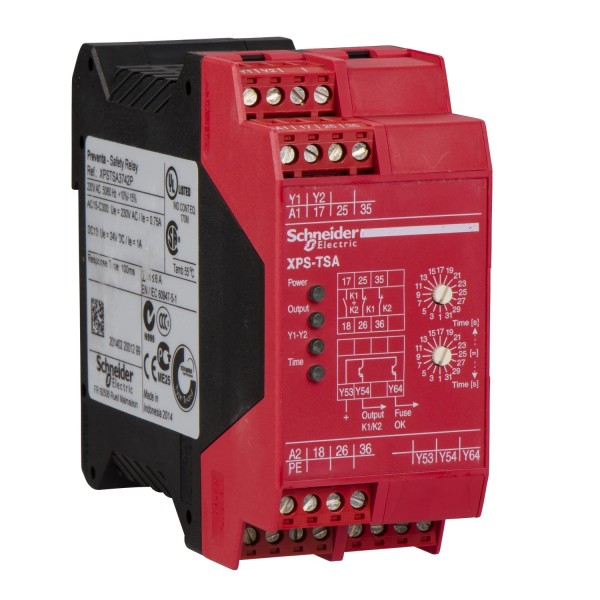

module XPSTS - interlocking on high inertia machines - 230 V AC

Ülevaaded: 0

Tootekood: XPSTSA3742P

Quick Overview

Saadavus: Tellimisel

295,36 € (ilma KM-ta)

Details

Main
range of product
Preventa Safety automation
product or component type
Preventa safety time delay module
safety module name
XPSTSA
safety module application
For application with interlocking on high inertia
function of module
Monitoring safety time delays
safety level
Can reach PL d/category 3 EN/ISO 13849-1
Can reach SILCL 2 EN/IEC 62061
safety reliability data
MTTFd = 126 years EN/ISO 13849-1
DC = 60...90 % EN/ISO 13849-1
PFHd = 1.3E-7 1/h EN/IEC 62061
[Us] rated supply voltage
230 V AC - 15...10 %
output type
Relay, 1 NO + 2 NC, volt-free
number of additional circuits
2 solid state outputs
Complementary
supply frequency
50/60 Hz
maximum power consumption in VA
5,5 VA AC
input protection type
Internal, electronic
time delay
1...31 s configurable
breaking capacity
180 VA holding AC-15 C300 relay output
1800 VA inrush AC-15 C300 relay output
breaking capacity
10 mA 48 V
20 mA 24 V solid state output circuit
1,5 A 24 V DC-13)50 ms relay output
[Ith] conventional free air thermal current
6 A relay output
associated fuse rating
4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
6 A fast blow relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
minimum output current
10 mA relay output
minimum output voltage
17 V relay output
[Ui] rated insulation voltage
300 V 2)IEC 60947-5-1
300 V 2)DIN VDE 0110 part 1
[Uimp] rated impulse withstand voltage
4 kV III IEC 60947-5-1
4 kV III DIN VDE 0110 part 1
local signalling
4 LEDs
connections - terminals
Captive screw clamp terminals, removable terminal block flexible 0.2...1.5 mm² without cable end, 2 wires
Captive screw clamp terminals, removable terminal block flexible 0.2...2.5 mm² without cable end, 1 wire
Captive screw clamp terminals, removable terminal block flexible 0.25...1 mm² with cable end, without bezel, 2 wires
Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, with bezel, 1 wire
Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, without bezel, 1 wire
Captive screw clamp terminals, removable terminal block flexible 0.5...1.5 mm² with cable end, with double bezel, 2 wires
Captive screw clamp terminals, removable terminal block solid 0.2...1 mm² without cable end, 2 wires
Captive screw clamp terminals, removable terminal block solid 0.2...2.5 mm² without cable end, 1 wire
mounting support
35 mm symmetrical DIN rail
depth
114 mm
height
99 mm
width
45 mm
net weight
0,36 kg
Environment
standards
EN/IEC 60204-1
EN/IEC 60947-5-1
product certifications
UL
CSA
TÜV
IP degree of protection
IP20 terminals)EN/IEC 60529
IP40 enclosure)EN/IEC 60529
ambient air temperature for operation
-10…55 °C
ambient air temperature for storage
-25…85 °C
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Keskkonnaalane avaldus
Ringlusprofiil
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
