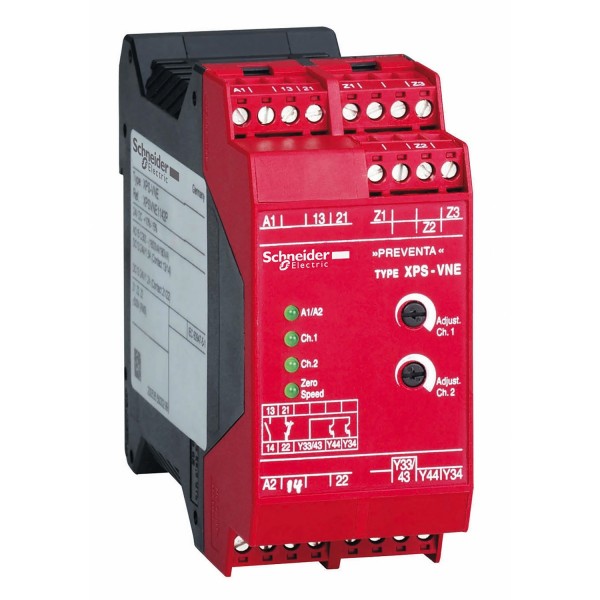

module XPSVN - zero speed detection - 24 V DC for motor power supply <= 60 Hz

Product was successfully added to your shopping cart.

module XPSVN - zero speed detection - 24 V DC for motor power supply <= 60 Hz

Tootekood: XPSVNE1142P

Quick Overview

Saadavus: Tellimisel

676,53 € (ilma KM-ta)

Qty:

Details

Main
range of product	Preventa Safety automation
product or component type	Preventa safety module
safety module name	XPSVNE
safety module application	For zero speed detection
function of module	Monitoring 3-phase motor with star-delta starting Monitoring 3-phase motor with variable number of poles and star-delta starting Monitoring 3-phase motor + variable speed drive Monitoring 3-phase motor Monitoring XPS AK Monitoring star-delta motor starter and guard switch type XCS E Monitoring dc motor
safety level	Can reach PL d/category 3 EN/ISO 13849-1 Can reach SILCL 2 EN/IEC 62061
safety reliability data	MTTFd = 124.1 years EN/ISO 13849-1 DC > 99 % EN/ISO 13849-1 PFHd = 9.26E-9 1/h EN/IEC 62061
[Us] rated supply voltage	24 V DC - 15...10 %
output type	Relay, 1 NO + 1 NC, volt-free
number of additional circuits	2 solid state outputs

Complementary
product destination	For motor power supply <= 60 Hz
maximum power consumption in W	3,5 W
input voltage	500 Vrms
input detection threshold	0.01...0.1 V
breaking capacity	180 VA holding AC-15 C300 relay output 1800 VA inrush AC-15 C300 relay output
breaking capacity	1,2 A 24 V DC-13)50 ms NC relay output circuit 1,5 A 24 V DC-13)50 ms NO relay output circuit 10 mA 48 V solid state output circuit 20 mA 24 V solid state output circuit
[Ith] conventional free air thermal current	2,5 A relay output
associated fuse rating	4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
minimum output current	10 mA relay output
minimum output voltage	17 V relay output
[Ui] rated insulation voltage	300 V 2)IEC 60947-5-1 300 V 2)DIN VDE 0110 parts 1 and 2
[Uimp] rated impulse withstand voltage	4 kV III IEC 60947-5-1 4 kV III DIN VDE 0110 parts 1 and 2
local signalling	4 LEDs
connections - terminals	Captive screw clamp terminals, removable terminal block flexible 0.2...1.5 mm² without cable end, 2 wires Captive screw clamp terminals, removable terminal block flexible 0.2...2.5 mm² without cable end, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.25...1 mm² with cable end, without bezel, 2 wires Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, with bezel, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, without bezel, 1 wire Captive screw clamp terminals, removable terminal block flexible 0.5...1.5 mm² with cable end, with double bezel, 2 wires Captive screw clamp terminals, removable terminal block solid 0.2...1 mm² without cable end, 2 wires Captive screw clamp terminals, removable terminal block solid 0.2...2.5 mm² without cable end, 1 wire
mounting support	35 mm symmetrical DIN rail
depth	114 mm
height	99 mm
width	45 mm
net weight	0,5 kg

Environment
standards	EN/IEC 60947-5-1 EN/IEC 60204-1
product certifications	CSA UL TÜV
IP degree of protection	IP20 terminals)EN/IEC 60529 IP40 enclosure)EN/IEC 60529
ambient air temperature for operation	-10…55 °C
ambient air temperature for storage	-25…85 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
