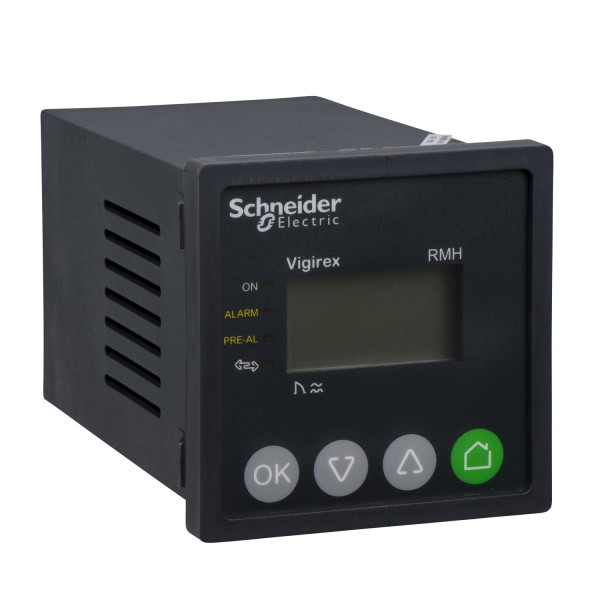

Monitoring relay Vigirex RMH - 30 mA..30 A - 220..240 V AC

Ülevaaded: 0

Tootekood: LV481004

Quick Overview

Saadavus: Tellimisel

980,73 € (ilma KM-ta)

Details

Main
range
Vigirex
range of product
Vigirex
device short name
RMH
product or component type
Monitoring relay
range compatibility
Vigirex RMH RM12T multiplexer
Vigirex RMH TOA earth leakage current sensor
Vigirex RMH A earth leakage current sensor
Vigirex RMH L rectangular sensor
relay application
Monitoring relay
Complementary
network rated voltage
1000 V - AC 50...400 Hz
earthing system
TN-S
IT
TT
[Us] rated supply voltage
220...240 V AC 50...400 Hz - 15...10 %
power consumption in VA
8 VA
type of measurement
Earth fault current internal measurement 20...200 % +/- 20 %
refresh time
0.5 s
threshold setting
0.015...1 A adjustable in step of 0.001 A pre-alarm
1...30 A adjustable in step of 0.1 A pre-alarm
0.03...1 A adjustable in step of 0.001 A alarm
1...30 A adjustable in step of 0.1 A alarm
residual earth-leakage time delay adjustment type
Adjustable 0…4,5 s adjustable in step of 10 ms pre-alarm
Instantaneous 30 mA alarm
Adjustable 0,03…30 A 0…4,5 s adjustable in step of 10 ms alarm
type of setting
Keypad
Modbus address
signal contacts composition
1 C/O alarm fail-safe
1 NO pre-alarm fail-safe
test function
Local
Remote test (via communication)
[Ithe] conventional enclosed thermal current
8 A
minimum load
10 mA 12 V
[Ie] rated operational current
6 A 24 V AC standard AC-12
6 A 24 V AC standard AC-13
5 A 24 V AC standard AC-14
5 A 24 V AC standard AC-15
6 A 24 V DC standard DC-12
2 A 24 V DC standard DC-13
6 A 48 V AC standard AC-12
6 A 48 V AC standard AC-13
5 A 48 V AC standard AC-14
5 A 48 V AC standard AC-15
2 A 48 V DC standard DC-12
6 A 110...130 V AC standard AC-12
6 A 110...130 V AC standard AC-13
4 A 110...130 V AC standard AC-14
4 A 110...130 V AC standard AC-15
0,6 A 110...130 V DC standard DC-12
6 A 220...240 V AC standard AC-12
6 A 220...240 V AC standard AC-13
4 A 220...240 V AC standard AC-14
4 A 220...240 V AC standard AC-15
0,4 A 250 V DC standard DC-12
5 A 380...415 V AC standard AC-12
cut-out dimensions
68 x 68 mm
net weight
0,3 kg
IP degree of protection
Front face IP40 IEC 60529
Other parts IP30 IEC 60529
Connection IP20 IEC 60529
IK degree of protection
IK07 EN 50102
mechanical robustness
Vibrations 13.2...100 Hz0.7 g
Vibrations 2...13.2 Hz+/- 1 mm
tamperproof of settings
Protected by access code
mounting support
Panel
height
72 mm
width
72 mm
depth
117 mm
connections - terminals
Alarm circuit terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Alarm circuit terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Multiplexer connection terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Multiplexer connection terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Pre alarm terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Pre alarm terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Voltage presence terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Voltage presence terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Power supply terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Power supply terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
wire stripping length
Alarm circuit 6 mm
Multiplexer connection 6 mm
Pre alarm 6 mm
Voltage presence 6 mm
Power supply 6 mm
tightening torque
Alarm circuit 0,5 N.m
Multiplexer connection 0,5 N.m
Pre alarm 0,5 N.m
Voltage presence 0,5 N.m
Power supply 0,5 N.m
communication service
Modbus slave
Environment
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-40…85 °C
environmental characteristic
Exposure to damp heat not in service IEC 60068-2-30
Exposure to damp heat in service IEC 60068-2-56
Salt mist IEC 60068-2-52
relative humidity
95 % 25…55 °C
pollution degree
3 IEC 60664-1
electromagnetic compatibility
Conducted and radiated emissionsB CISPR 11
Conducted radio-frequency immunity test3 IEC 61000-4-6
Electrostatic discharge immunity test4 IEC 61000-4-2
High-energy conducted susceptibility4 IEC 61000-4-5
Low-energy conducted susceptibility4 IEC 61000-4-4
Radiated susceptibility3 IEC 61000-4-3
electrical shock protection class
Class II
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
ELi RoHS direktiiv
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus
Ringlusprofiil
