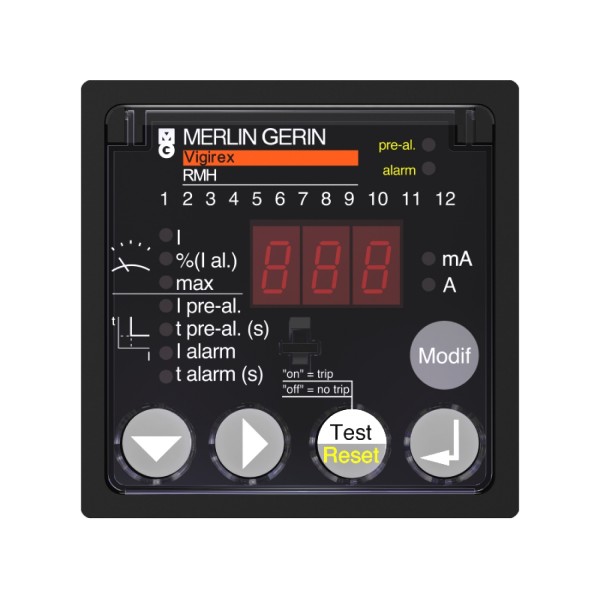

Monitoring relay Vigirex RMH - 30 mA..30 A - 220..240 V AC

Vigirex

Vigirex

RMH

Monitoring relay

Vigirex RMH RM12T multiplexer
Vigirex RMH TOA earth leakage current sensor
Vigirex RMH A earth leakage current sensor
Vigirex RMH L rectangular sensor

Monitoring relay
Current control relay

TN-S
TT

220...240 V AC 400 Hz 70...110 %
220...240 V AC 50/60 Hz 70...110 %

8 VA

Earth fault current internal measurement 80...100 % +/- 10 %

0.015...1 A adjustable in step of 0.001 A pre-alarm
1...30 A adjustable in step of 0.1 A pre-alarm
0.03...1 A adjustable in step of 0.001 A alarm
1...30 A adjustable in step of 0.1 A alarm

Adjustable 0,03…30 A 0…5 s

Keypad
Internal bus

1 NO

Local

Electronics continuous)
Power supply continuous)
Relay/sensor link continuous)
Sensor/multiplexer RM12T and RM12T/RMH link continuous)

8 A

10 mA 12 V

0,3 kg

Front face IP40 IEC 60529
Other parts IP30 IEC 60529
Connection IP20 IEC 60529

IK07 EN 50102

Fire resistance IEC 60695-2-1
Vibrations 13.2...100 Hz0.7 g
Vibrations 2...13.2 Hz+/- 1 mm

Class A si
Class AC

IV

Protected by sealable cover

Panel

72 mm

72 mm

116 mm

Alarm circuit terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Alarm circuit terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Alarm circuit terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12
Auxiliary power supply terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Auxiliary power supply terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Auxiliary power supply terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12
Communication bus terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Communication bus terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Communication bus terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12
Multiplexer connection terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Multiplexer connection terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Multiplexer connection terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12
Pre alarm terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Pre alarm terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Pre alarm terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12
Voltage presence terminal block 0,2…2,5 mm² flexible AWG 22...AWG 12
Voltage presence terminal block 0,2…2,5 mm² rigid AWG 22...AWG 12
Voltage presence terminal block 0,25…2,5 mm² flexible with ferrule AWG 22...AWG 12

Alarm circuit 6 mm
Auxiliary power supply 6 mm
Communication bus 6 mm
Multiplexer connection 6 mm
Pre alarm 6 mm
Voltage presence 6 mm

Alarm circuit 0,5 N.m
Auxiliary power supply 0,5 N.m
Communication bus 0,5 N.m
Multiplexer connection 0,5 N.m
Pre alarm 0,5 N.m
Voltage presence 0,5 N.m

Supervision via internal bus

-25…55 °C

-40…85 °C

Conducted and radiated emissionsB CISPR 11
Conducted radio-frequency immunity test3 IEC 61000-4-6
Electrostatic discharge immunity test4 IEC 61000-4-2
High-energy conducted susceptibility4 IEC 61000-4-5
Low-energy conducted susceptibility4 IEC 61000-4-4
Radiated susceptibility3 IEC 61000-4-3

Class II

18 months
