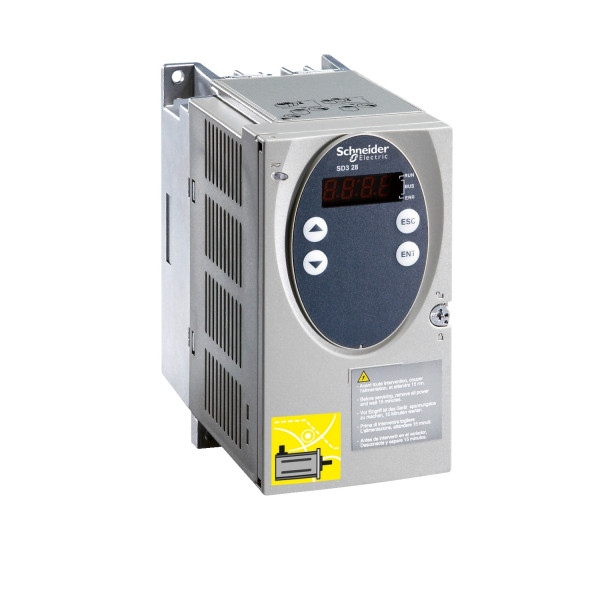

motion control stepper motor drive - SD328 - Profibus DP fieldbus - <= 2.5 A

Ülevaaded: 0

Tootekood: SD328BU25S2

Quick Overview

Saadavus: Tellimisel

1 358,93 € (ilma KM-ta)

Details

Main
range of product
Lexium SD3
product or component type
Motion stepper drive
device short name
SD328
supply voltage limits
200…240 V
100…120 V
bus type
Fieldbus
Complementary
format of the drive
Block
network number of phases
Single phase
[Us] rated supply voltage
100...120 V - 15...10 %
200...230 V - 15...10 %
supply voltage type
AC/DC
network frequency limits
50…60 Hz (- 15...10 %)
communication interface
Profibus DP fieldbus, integrated
maximum motor phase current
2.5 A
current consumption
3 A 230 V main supply
4 A 115 V main supply
<= 0.2 mA 24 V control voltage
nominal power
180 W at 115 V
270 W at 230 V
short-circuit current
0.5 kA
power losses
<= 26 W
associated fuse rating
6 A at 115 V
6 A at 230 V
overvoltage category
III
inrush current
60 A
maximum leakage current
30 mA <10 m IEC 60990-3
voltage state 0 guaranteed
-3...5 V for 24 V input signals
voltage state 1 guaranteed
15...30 V for 24 V input signals
input current
10 mA for 24 V input signals
maximum input frequency
200 kHz for signal input ENC_A, ENC_B, ENC_I - control type pulse/direction
400 kHz for signal input ENC_A, ENC_B, ENC_I - control type A/B
maximum output frequency
400 kHz for pulse/direction interface A/B
200 kHz for pulse/direction interface pulse/direction
maximum switching current
50 mA (24 V output signals)
maximum voltage drop
<1 V 50 mA load for 24 V output signals
physical interface
RS422 - pulse/direction interface
RS422 - signal input ENC_A, ENC_B, ENC_I
output voltage
<= 30 V (24 V output signals)
4.75...5.25 V (ENC+5V_OUT signal output)
input voltage
24 V -15 %/+20 % for 24 V control voltage
residual ripple
< 5 % (24 V control voltage)
resistance
5 kOhm (pulse/direction interface)
safety function
Safe torque off safety function for machine conforming to IEC/EN 61800-5-2
Safe torque off safety function for machine conforming to ISO 13849-1 level d
Safe torque off safety function for system process conforming to EN/IEC 61508 level SIL2
Safe torque off safety function for system process conforming to IEC/EN 61800-5-2
type of cooling
Natural convection
maximum mechanical speed
3000 rpm
height
145 mm
width
72 mm
depth
140 mm
shock resistance
15 gn for 11 ms conforming to EN/IEC 60068-2-27
net weight
1.1 kg
Environment
electromagnetic compatibility
Electrostatic discharge level 3 conforming to EN/IEC 61000-4-2
Immunity to electrical transients level 4 conforming to EN/IEC 61000-4-4
Immunity to radiated radio-electrical interference level 3 conforming to EN/IEC 61000-4-3
Voltage/current impulse level 3 conforming to EN/IEC 61000-4-5
standards
EN/IEC 61800-3
EN/IEC 61800-5-1
EN/IEC 61800-3 environment 2
EN/IEC 50178
EN/IEC 61800-3 environment 1
product certifications
UL
TÜV
CUL
marking
CE
ambient air temperature for operation
0…50 °C
ambient air temperature for storage
-25…70 °C
pollution degree
Level 2
relative humidity
5…85 % without condensation
operating altitude
<= 1000 m without
> 1000...< 2000 m without (maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
vibration resistance
1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
IP degree of protection
IP20
On upper part: IP40 (without removal of protective film)
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
