  • motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 0.9 kW

Product was successfully added to your shopping cart.

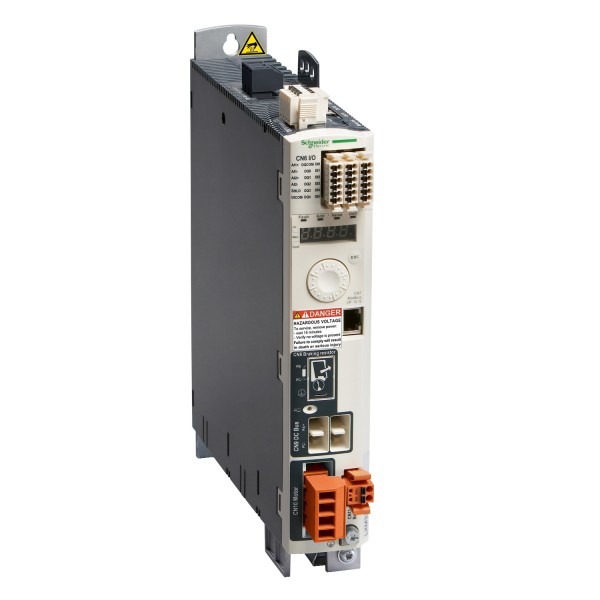

motion servo drive - Lexium 32 - three-phase supply voltage 208/480V - 0.9 kW

Ülevaaded: 0

Tootekood: LXM32CD12N4

Quick Overview

Saadavus: Tellimisel

1 063,95 € (ilma KM-ta)

Details

Main
range of product
Lexium 32
product or component type
Motion servo drive
device short name
LXM32C
format of the drive
Book
network number of phases
Three phase
[Us] rated supply voltage
200...240 V - 15...10 %
380...480 V - 15...10 %
supply voltage limits
323…528 V
170…264 V
supply frequency
50/60 Hz - 5...5 %
network frequency
47.5...63 Hz
EMC filter
Integrated
continuous output current
3 A at 8 kHz
output current 3s peak
12 A for 5 s
maximum continuous power
800 W at 230 V
1600 W at 400 V
nominal power
0.7 kW at 230 V 8 kHz
0.9 kW at 400 V 8 kHz
line current
3.5 A 88 % at 380 V, with external line choke of 2 mH
2.9 A 98 % at 480 V, with external line choke of 2 mH
2.4 A 182 % at 480 V, without line choke
3.6 A 174 % at 380 V, without line choke
Complementary
switching frequency
8 kHz
overvoltage category
III
maximum leakage current
30 mA
output voltage
<= power supply voltage
electrical isolation
Between power and control
type of cable
Single-strand IEC cable (temperature: 50 °C) copper 90 °C XLPE/EPR
electrical connection
Terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Terminal, clamping capacity: 5 mm², AWG 10 (CN1)
Terminal, clamping capacity: 5 mm², AWG 10 (CN10)
tightening torque
CN8: 0.5 N.m
CN1: 0.7 N.m
CN10: 0.7 N.m
discrete input number
2 safety discrete input(s)
6 logic discrete input(s)
discrete input type
Logic (DI terminals)
Safety (compliment of STO_A, compliment of STO_B terminals)
sampling duration
ANA1+/ANA1-, ANA2+/ANA2-: 0.25 ms analog
DI: 0.25 ms discrete
discrete input voltage
24 V DC for logic
24 V DC for safety
discrete input logic
Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Positive (DI) at State 0: > 19 V at State 1: < 9 V conforming to EN/IEC 61131-2 type 1
Positive or negative (DI) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
response time
<= 5 ms compliment of STO_A, compliment of STO_B
discrete output number
5
discrete output type
Logic output(s) (DO)24 V DC
discrete output voltage
<= 30 V DC
discrete output logic
Positive or negative (DO) conforming to EN/IEC 61131-2
contact bounce time
<= 1 ms for compliment of STO_A, compliment of STO_B
0.25 µs...1.5 ms for DI
braking current
50 mA
analogue input number
2
response time on output
250 µs (DO) for discrete output(s)
absolute accuracy error
< +/- 0.5 %
linearity error
< +/- 0.1 %
analogue input type
ANA1+/ANA1-, ANA2+/ANA2- analog input: differential +/- 10 V, impedance: >= 20 Ohm, resolution: 14 bits
control signal type
Servo motor encoder feedback
Pulse train output (PTO) RS422 <500 kHz <100 m
Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m
Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m
Pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m
protection type
Against reverse polarity: inputs signal
Against short-circuits: outputs signal
safety function
STO (safe torque off), integrated
safety level
SIL 3 conforming to EN/IEC 61508
PL = e conforming to ISO 13849-1
communication interface
Modbus, integrated
connector type
RJ45 (labelled CN7) for Modbus
commissioning port
2-wire RS485 multidrop for Modbus
transmission rate
9600, 19200, 38400 bps for bus length of 40 m for Modbus
number of addresses
1…247 for Modbus
status LED
1 LED (red)servo drive voltage:
signalling function
Display of faults 7 segments
marking
CE
operating position
Vertical +/- 10 degree
product compatibility
Servo motor BMH (70 mm, 1 motor stacks)
Servo motor BMH (70 mm, 2 motor stacks)
Servo motor BMH (100 mm, 1 motor stacks)
Servo motor BSH (70 mm, 1 motor stacks)
Servo motor BSH (70 mm, 2 motor stacks)
width
48 mm
height
270 mm
depth
237 mm
net weight
1.8 kg
Environment
electromagnetic compatibility
Conducted EMC, class A group 1 conforming to EN 55011
Conducted EMC, class A group 2 conforming to EN 55011
Conducted EMC, environment 2 category C3 conforming to EN/IEC 61800-3
Conducted EMC, category C2 conforming to EN/IEC 61800-3
Conducted EMC, environments 1 and 2 conforming to EN/IEC 61800-3
Electrostatic discharge immunity test, level 3 conforming to EN/IEC 61000-4-2
Susceptibility to electromagnetic fields, level 3 conforming to EN/IEC 61000-4-3
1.2/50 µs shock waves immunity test, level 3 conforming to EN/IEC 61000-4-5
Electrical fast transient/burst immunity test, level 4 conforming to EN/IEC 61000-4-4
Radiated EMC, class A group 2 conforming to EN 55011
Radiated EMC, category C3 conforming to EN/IEC 61800-3
standards
EN/IEC 61800-5-1
EN/IEC 61800-3
product certifications
RoHS
UL
CSA
TÜV
IP degree of protection
IP20 conforming to EN/IEC 60529
IP20 conforming to EN/IEC 61800-5-1
vibration resistance
1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6
shock resistance
15 gn for 11 ms conforming to EN/IEC 60028-2-27
pollution degree
2 conforming to EN/IEC 61800-5-1
environmental characteristic
Classes 3C1 conforming to IEC 60721-3-3
relative humidity
Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
ambient air temperature for operation
0…50 °C conforming to UL
ambient air temperature for storage
-25…70 °C
type of cooling
Integrated fan
operating altitude
<= 1000 m without
> 1000...3000 m with conditions
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
