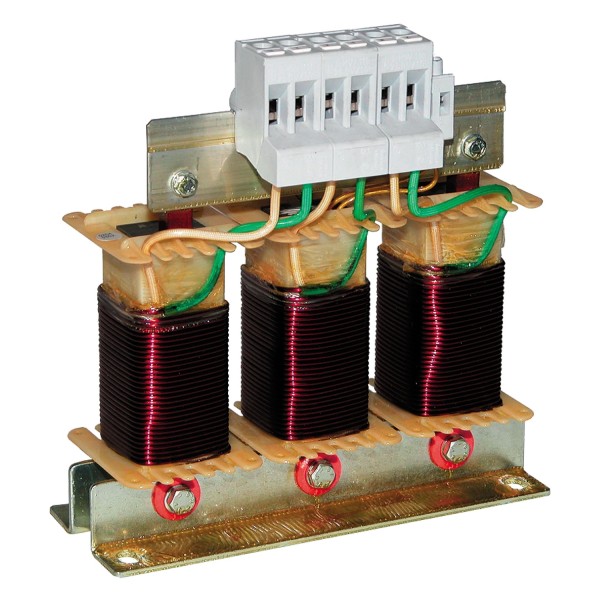

motor choke - 215 A - for variable speed drive- set of 3

Product was successfully added to your shopping cart.

motor choke - 215 A - for variable speed drive- set of 3

Tootekood: VW3A5104

Quick Overview

Saadavus: Tellimisel

390,16 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Motor choke
range compatibility	Altivar 61Q Altivar 71Q Altivar 212 Altivar 71 Altivar Process ATV600 Altivar Process ATV900 Altivar 61
product specific application	Output filter
[In] rated current	215 A
product compatibility	ATV61HD11N4 ATV61HD15N4 ATV61HD18N4 ATV61HU22S6X ATV61HU30S6X ATV61HU40S6X ATV61HU55N4 ATV61HU55S6X ATV61HU75N4 ATV61HU75S6X ATV61WD11N4 ATV61WD11N4C ATV61WD15N4 ATV61WD15N4C ATV61WD18N4 ATV61WD18N4C ATV61WU55N4 ATV61WU55N4C ATV61WU75N4 ATV61WU75N4C ATV71HD11N4 ATV71HD11Y ATV71HD15N4 ATV71HD18N4 ATV71HU15S6X ATV71HU22S6X ATV71HU30S6X ATV71HU40S6X ATV71HU55N4 ATV71HU55S6X ATV71HU75N4 ATV71HU75S6X ATV71PD11N4Z ATV71PU55N4Z ATV71PU75N4Z ATV71WD11N4 ATV71WD15N4 ATV71WD18N4 ATV71WU55N4 ATV71WU75N4 ATV212HU15N4 ATV61HD15Y ATV61HD18Y ATV61HD22N4 ATV61HD22Y ATV61HD30N4 ATV61HD30Y ATV61HD37N4 ATV61WD22N4 ATV61WD22N4C ATV61WD30N4 ATV61WD30N4C ATV61WD37N4 ATV61WD37N4C ATV71HD15Y ATV71HD18Y ATV71HD22N4 ATV71HD22Y ATV71HD30Y ATV71HD37N4 ATV71WD30N4 ATV71WD37N4 ATV630 variable speed drive - 2,2 kW, 500...690 V three phase ATV630 variable speed drive - 3 kW, 500...690 V three phase ATV630 variable speed drive - 4 kW, 500...690 V three phase ATV630 variable speed drive - 5,5 kW, 500...690 V three phase ATV630 variable speed drive - 7,5 kW, 500...690 V three phase ATV630 variable speed drive - 11 kW, 500...690 V three phase ATV930 variable speed drive - 2,2 kW, 500...690 V three phase ATV930 variable speed drive - 3 kW, 500...690 V three phase ATV930 variable speed drive - 4 kW, 500...690 V three phase ATV930 variable speed drive - 5,5 kW, 500...690 V three phase ATV930 variable speed drive - 7,5 kW, 500...690 V three phase ATV930 variable speed drive - 11 kW, 500...690 V three phase ATV630 variable speed drive, 3 hp, 600 V three phase ATV630 variable speed drive, 5 hp, 600 V three phase ATV630 variable speed drive, 7,5 hp, 600 V three phase ATV630 variable speed drive, 10 hp, 600 V three phase ATV630 variable speed drive, 15 hp, 600 V three phase ATV930 variable speed drive, 3 hp, 600 V three phase ATV930 variable speed drive, 5 hp, 600 V three phase ATV930 variable speed drive, 7,5 hp, 600 V three phase ATV930 variable speed drive, 10 hp, 600 V three phase ATV930 variable speed drive, 15 hp, 600 V three phase ATV212HD15M3X ATV212WD15N4 ATV212WD15N4C ATV61HC11Y ATV61HC13Y ATV61HC16Y ATV61HD30M3X ATV61HD37M3X ATV61HD37Y ATV61HD45M3X ATV61HD45N4 ATV61HD45Y ATV61HD55N4 ATV61HD55Y ATV61HD75N4 ATV61HD75Y ATV61HD90N4 ATV61HD90Y ATV61QC11N4 ATV61QC13Y ATV61WD45N4 ATV61WD45N4C ATV61WD55N4 ATV61WD55N4C ATV61WD75N4 ATV61WD75N4C ATV61WD90N4 ATV61WD90N4C ATV71HC11Y ATV71HC13Y ATV71HD30M3X ATV71HD37M3X ATV71HD37Y ATV71HD45M3X ATV71HD45N4 ATV71HD45Y ATV71HD55N4 ATV71HD55Y ATV71HD75N4 ATV71HD75Y ATV71HD90N4 ATV71HD90Y ATV71QC11Y ATV71QD90N4 ATV71WD45N4 ATV71WD55N4 ATV71WD75N4 ATV630 variable speed drive - 15 kW, 500...690 V three phase ATV630 variable speed drive - 18,5 kW, 500...690 V three phase ATV630 variable speed drive - 22 kW, 500...690 V three phase ATV630 variable speed drive - 30 kW, 500...690 V three phase ATV630 variable speed drive - 37 kW, 500...690 V three phase ATV630 variable speed drive - 45 kW, 500...690 V three phase ATV630 variable speed drive - 55 kW, 500...690 V three phase ATV630 variable speed drive - 75 kW, 500...690 V three phase ATV630 variable speed drive - 90 kW, 500...690 V three phase ATV930 variable speed drive - 15 kW, 500...690 V three phase ATV930 variable speed drive - 18,5 kW, 500...690 V three phase ATV930 variable speed drive - 22 kW, 500...690 V three phase ATV930 variable speed drive - 30 kW, 500...690 V three phase ATV930 variable speed drive - 37 kW, 500...690 V three phase ATV930 variable speed drive - 45 kW, 500...690 V three phase ATV930 variable speed drive - 55 kW, 500...690 V three phase ATV930 variable speed drive - 75 kW, 500...690 V three phase ATV930 variable speed drive - 90 kW, 500...690 V three phase ATV630 variable speed drive, 20 hp, 600 V three phase ATV630 variable speed drive, 25 hp, 600 V three phase ATV630 variable speed drive, 30 hp, 600 V three phase ATV630 variable speed drive, 40 hp, 600 V three phase ATV630 variable speed drive, 50 hp, 600 V three phase ATV630 variable speed drive, 60 hp, 600 V three phase ATV630 variable speed drive, 75 hp, 600 V three phase ATV630 variable speed drive, 100 hp, 600 V three phase ATV930 variable speed drive, 20 hp, 600 V three phase ATV930 variable speed drive, 25 hp, 600 V three phase ATV930 variable speed drive, 30 hp, 600 V three phase ATV930 variable speed drive, 40 hp, 600 V three phase ATV930 variable speed drive, 50 hp, 600 V three phase ATV930 variable speed drive, 60 hp, 600 V three phase ATV930 variable speed drive, 75 hp, 600 V three phase ATV930 variable speed drive, 100 hp, 600 V three phase
nedded quantity	3
electrical connection	Tag connector M10

Complementary
maximum motor cable length	150 m shielded cable 30…45 kW 200...240 V 1 300 m unshielded cable 30…45 kW 200...240 V 1 200 m shielded cable 5,5…18,5 kW 380...480 V 1 300 m unshielded cable 5,5…18,5 kW 380...480 V 1 150 m shielded cable 22…30 kW 380...480 V 1 300 m unshielded cable 22…30 kW 380...480 V 1 150 m shielded cable 45…75 kW 380...480 V 1 300 m unshielded cable 45…75 kW 380...480 V 1 150 m shielded cable 2,2…7,5 kW 500...600 V 1 250 m unshielded cable 2,2…7,5 kW 500...600 V 1 250 m shielded cable 2,2…7,5 kW 500...600 V 2 400 m unshielded cable 2,2…7,5 kW 500...600 V 2 100 m shielded cable 2,2…30 kW 500...690 V 1 150 m unshielded cable 2,2…30 kW 500...690 V 1 150 m shielded cable 11…30 kW 500...690 V 2 250 m unshielded cable 11…30 kW 500...690 V 2 150 m shielded cable 30…160 kW 500...690 V 1 250 m unshielded cable 30…160 kW 500...690 V 1 250 m shielded cable 30…160 kW 500...690 V 2 300 m unshielded cable 30…90 kW 500...690 V 2 400 m unshielded cable 90…160 kW 500...690 V 2 200 m shielded cable 37 kW 380...480 V 1 300 m unshielded cable 37 kW 380...480 V 1 200 m shielded cable 90 kW 380...480 V 1 300 m unshielded cable 90 kW 380...480 V 1
dV/dt	500 V/µs 400 V 750 V/µs 500 V 1000 V/µs 690 V
thermal losses	430 W
maximum drive output frequency	100 Hz
ambient air temperature for operation	-10…50 °C
net weight	15,5 kg

Environment
IP degree of protection	IP20 with kits VW3A9612,613) IP00
ambient air temperature for storage	-25…70 °C

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
