motor choke - 314 A - for variable speed drive ATV61/ATV71 - IP00

Product was successfully added to your shopping cart.

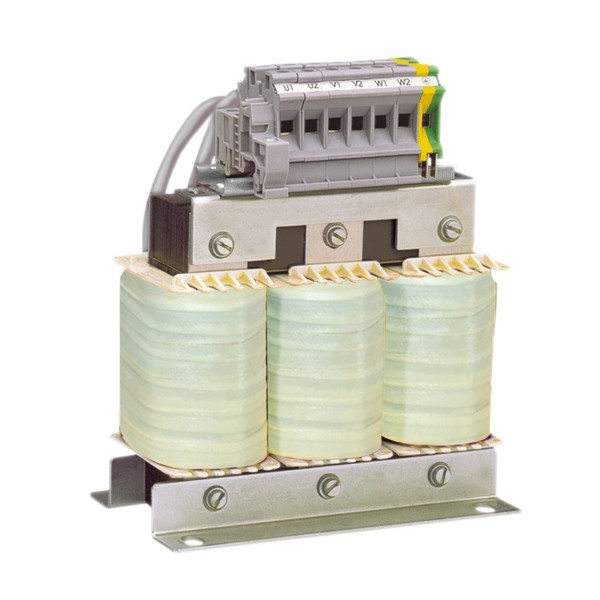

motor choke - 314 A - for variable speed drive ATV61/ATV71 - IP00

Tootekood: VW3A5105

Quick Overview

Saadavus: Tellimisel

632,26 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Motor choke
range compatibility	Altivar 71Q Altivar 61Q Altivar 61 Altivar 71
product specific application	Output filter
[In] rated current	314 A
product compatibility	ATV61HC11N4 ATV61HC13N4 ATV61HC20Y ATV61HC25Y ATV61HD55M3X ATV61HD75M3X ATV61QC13N4 ATV61QC16N4 ATV61QC16Y ATV61QC20Y ATV71HC11N4 ATV71HC13N4 ATV71HC16Y ATV71HC20Y ATV71HD55M3X ATV71HD75M3X ATV71QC11N4 ATV71QC13N4 ATV71QC13Y ATV71QC16Y
nedded quantity	3
electrical connection	Tag connector M10

Complementary
maximum motor cable length	150 m shielded cable 55…75 kW 200...240 V 1 300 m unshielded cable 55…75 kW 200...240 V 1 150 m shielded cable 110…132 kW 380...480 V 1 250 m unshielded cable 110…132 kW 380...480 V 1 150 m shielded cable 160…250 kW 500...690 V 1 250 m unshielded cable 160…250 kW 500...690 V 1 250 m shielded cable 160…250 kW 500...690 V 2 400 m unshielded cable 160…250 kW 500...690 V 2
dV/dt	500 V/µs 400 V 750 V/µs 500 V 1000 V/µs 690 V
thermal losses	475 W
maximum drive output frequency	100 Hz
ambient air temperature for operation	-10…50 °C
net weight	32 kg

Environment
IP degree of protection	IP20 with kits VW3A9612,613) IP00
ambient air temperature for storage	-25…70 °C

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon

Contractual warranty
Garantii	18 months
