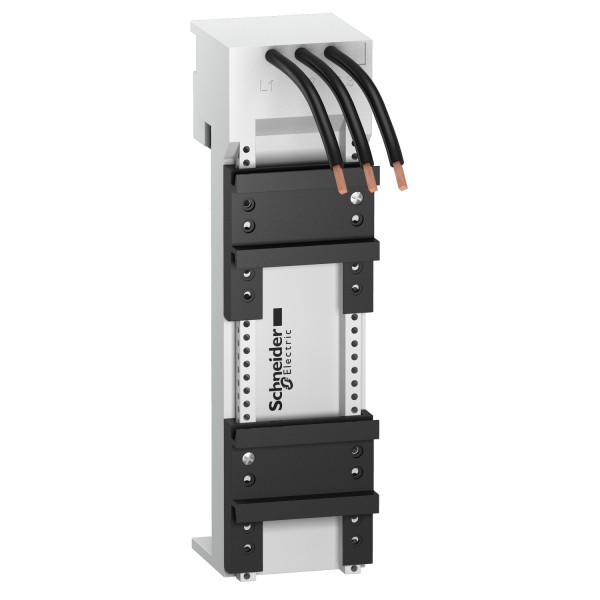

mounting plate LA9Z 1x3P 32A - 54x200x63mm for GV2LE/P/ME+LC1D

Details

Complementary
range compatibility	Prisma G Prisma P Prisma PH Prisma Pack TeSys GV2 TeSys D Spacial
product compatibility	LC1D GV2P GV2LE GV2ME
poles description	3P
permissible current	32 A
[Ui] rated insulation voltage	690 V
cable cross section	6 mm² - AWG 10
busbar pitch	60 mm
width	54 mm
height	200 mm
depth	63 mm
colour	Grey

Environment
IP degree of protection	IP20 conforming to IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
