Multi 9 - double OC or fault contact - 1 OF+SD/OF - 240/415 V AC - 24/130 V DC

Product was successfully added to your shopping cart.

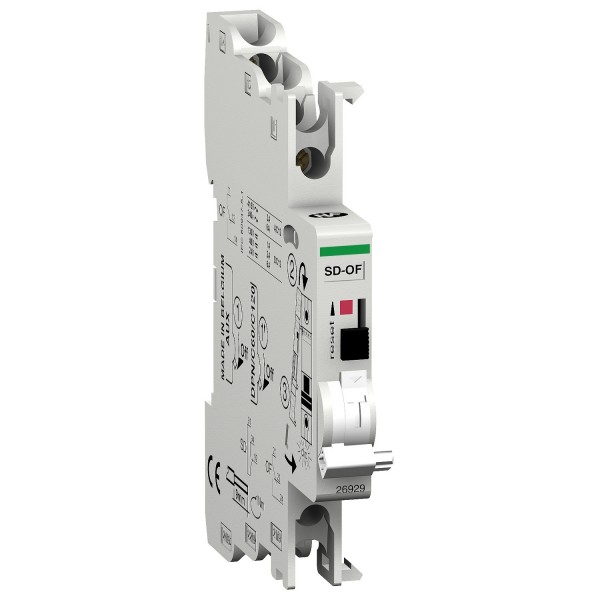

Multi 9 - double OC or fault contact - 1 OF+SD/OF - 240/415 V AC - 24/130 V DC

Tootekood: M9A26929

Quick Overview

Saadavus: Tellimisel

21,04 € (ilma KM-ta)

Qty:

Details

Main
range of product	Multi 9
product or component type	Double OC or fault contact
device short name	SD + OF
signal contacts composition	2 C/O
[In] rated current	3 A: 415 V AC - 50/60 Hz 6 A: <= 240 V AC - 50/60 Hz
[Uc] control circuit voltage	240...415 V AC 50/60 Hz 24...130 V DC
9 mm pitches	1

Complementary
range compatibility	Multi 9 C60 C60BP Multi 9 C60 C60BPR Multi 9 C60 C60SP Multi 9 GFP GFP Multi 9 C60H-DC C60H-DC
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
mounting mode	Fixed
mounting support	DIN rail
height	90 mm
width	9 mm
depth	73.5 mm
net weight	0.038 kg
connections - terminals	Clamp terminal (bottom) 1 cable(s) 2.5 mm² (AWG 14) - rigid Clamp terminal (bottom) 2 cable(s) 1.5 mm² (AWG 16) - rigid
wire stripping length	9 mm for bottom connection
tightening torque	1 N.m bottom

Environment
standards	EN/IEC 60947-5-1 EN 62019-2
product certifications	UR UL CCC PCT CSA
ambient air temperature for operation	-25…50 °C
ambient air temperature for storage	-40…85 °C

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
