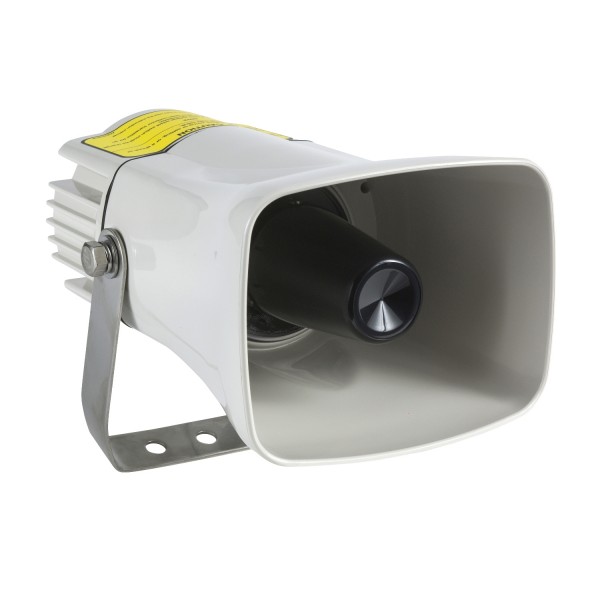

Multi-sound Siren

Ülevaaded: 0

Tootekood: XVS14BMW

Quick Overview

Saadavus: Tellimisel

212,06 € (ilma KM-ta)

Details

Main
range of product
Harmony XVS
product or component type
Multisound siren
device short name
XVS
Complementary
colour
White
material
ASA (Acrylonitrile Styrene Acrylate): front
ASA (Acrylonitrile Styrene Acrylate): back
PC (polycarbonate): back cover
net weight
1 kg
marking
CE
mounting support
Bracket
fixing mode
3 holes Ø 9 mm
[Uimp] rated impulse withstand voltage
0.8 kV
current consumption
350 mA at 24 V
250 mA at 12 V
electrical connection
Cable: 6.5…8.5 mm, 0.33 mm² / AWG AWG 22 (signalling circuit)
Cable: 6.5…8.5 mm, 0.52 mm² / AWG AWG 20 (power circuit)
width
140 mm
height
114 mm
depth
223 mm
Environment
signalling type
43 tones siren
standards
EN 61000-6-2
EN 55014-2
EN 55022
EN 61000-6-3
product certifications
UL
protective treatment
TC
ambient air temperature for storage
-35…70 °C
ambient air temperature for operation
-10…50 °C
overvoltage category
Class II conforming to EN/IEC 61140
IP degree of protection
IP53 conforming to EN/IEC 60529
[Us] rated supply voltage
12 V DC
24 V DC
noise level
0…105 dB (continuous or intermittent tone) at 1 m
Offer Sustainability
Sustainable offer status
Green Premium product
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
Contractual warranty
Warranty
18 months
