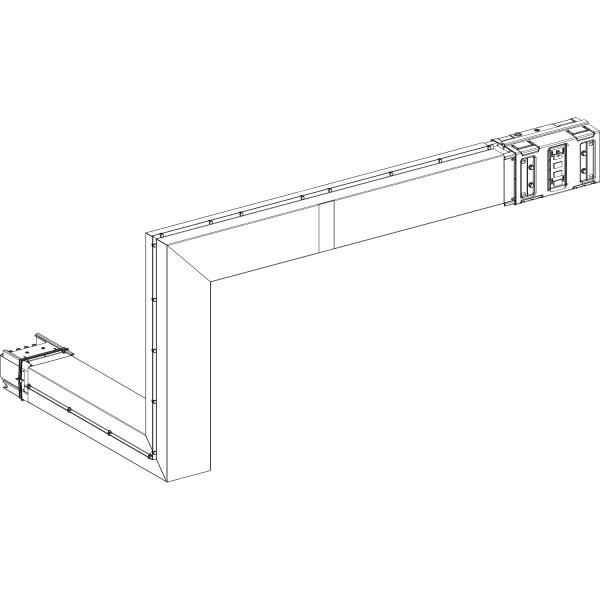

MULTIPLE ELBOW 630 A MADE TO MEASURE

Tootekood: KSA630DMBK4CF

Quick Overview

Saadavus: Tellimisel

3 538,48 € (ilma KM-ta)

Qty:

Main
range of product	Canalis
product name	KS
product or component type	Multiple elbow
busbar description	Fire barrier
device application	Change direction
[Ie] rated operational current	500 A 35 °C 630 A 35 °C
direction change type	1 edgewise downward - up 3 flat right - left

Complementary
[Ue] rated operational voltage	230...690 V
network frequency	50/60 Hz
dimension type	Made to measure
operating angle	90 °
mounting mode	By screws
electrical connection	Lubricated sliding contact
standards	IEC 61439-6 IEC 60439-2
width	167 mm
depth	116 mm
length	1 290…785 mm 3 290…785 mm
colour	White RAL 9001)
net weight	18 kg

Environment
IP degree of protection	IP55 IEC 60529
IK degree of protection	IK08 IEC 62262

Contractual warranty
Garantii	18 months
