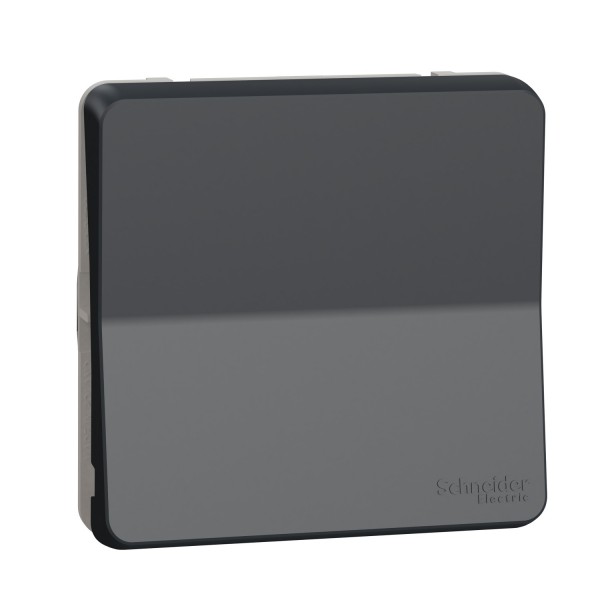

Mureva Styl - intermediate switch - flush & surface mounting

Details

Complementary
device mounting	Flush Surface
switch function	Intermediate
actuator	Rocker
rated current	10 AX
load type	Load for energy saving lamps with ballast: 100 W
[Ue] rated operational voltage	250 V AC
condition of use	Indoor/outdoor
material	SEBS ABS (acrylonitrile butadiene-styrene) Brass
fixing mode	By screws
clamping connection capacity	1.5...2.5 mm² for rigid cable(s) 1.5...2.5 mm² for stranded cable(s) 1.5...2.5 mm² for flexible cable(s)
wire stripping length	13 mm
height	71 mm
width	71 mm
depth	40 mm

Environment
quality labels	AENOR EAC CE NF
IP degree of protection	IP55
IK degree of protection	IK08
flame retardance	Self-extinguishing 650 °C conforming to IEC 60695-2-1
standards	EN 60669-1
ambient air temperature for operation	-5…40 °C
ambient air temperature for storage	-25…55 °C

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
