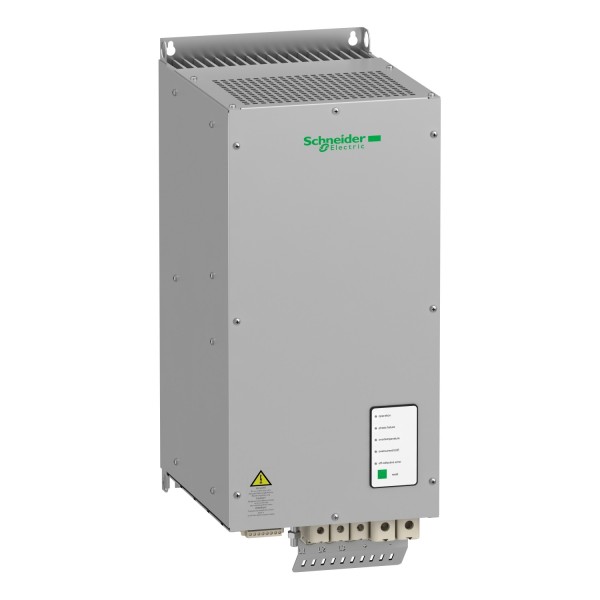

network braking unit - 160 kW - 400 V - for variable speed drive

Ülevaaded: 0

Tootekood: VW3A7209

Quick Overview

Saadavus: Tellimisel

12 422,89 € (ilma KM-ta)

Details

Main
product or component type
Network braking unit
range compatibility
Altivar 71
[Us] rated supply voltage
400 V
maximum current Irms
231 A AC
279 A DC
permanent braking power
86 kW
maximum braking power
160 kW
Complementary
supply circuit type
AC
associated fuse rating
350 A 660 V
supply voltage limits
380…415 V
network frequency
40...60 Hz +/- 10 %
overload protection
1.2 x maximum current
efficiency
97 %
cos phi
1
electrical connection
Bare wires M8 95 mm²
height
837 mm
width
380 mm
depth
395 mm
net weight
90 kg
Environment
IP degree of protection
IP20
relative humidity
Class F without condensation 5…85 %
ambient air temperature for operation
40…55 °C with current derating 3 % per °C)
5…40 °C without current derating)
ambient air temperature for storage
-25…55 °C
operating altitude
<= 1000 m without current derating
<= 1000 m without
1000...4000 m with current derating 5 % per 1000 m
Offer Sustainability
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
Contractual warranty
Garantii
18 months
