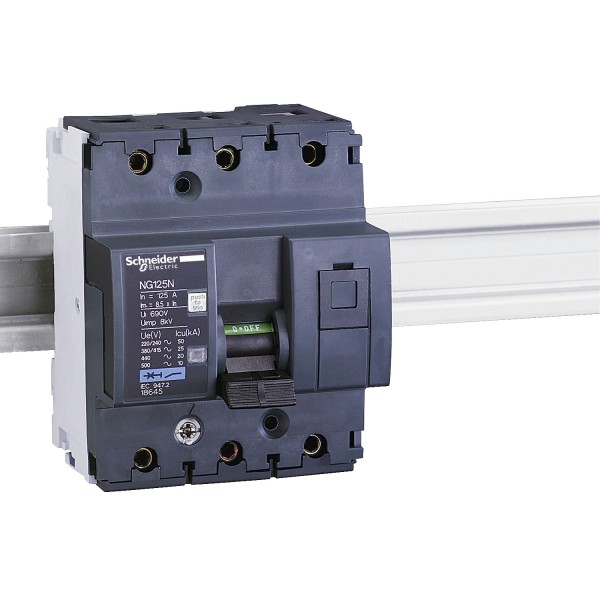

NG125 - kaitselüliti - NG125N - 3P - 16A

Details

Main
range of product	NG125
range	Acti 9
product name	Acti 9 NG125
product or component type	Miniature circuit-breaker
device short name	NG125N
device application	Distribution
poles description	3P
number of protected poles	3
[In] rated current	16 A 40 °C
network type	AC DC
trip unit technology	Thermal-magnetic
curve code	C
breaking capacity	20 kA Icu <= 375 V DC EN/IEC 60947-2 10 kA Icu 500 V AC 50/60 Hz EN/IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz EN/IEC 60947-2 25 kA Icu 380...415 V AC 50/60 Hz EN/IEC 60947-2 50 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2
utilisation category	Category A IEC 60947-2
suitability for isolation	Yes IEC 60947-2

Complementary
network frequency	50/60 Hz
[Ue] rated operational voltage	<= 375 V DC 380...415 V AC 50/60 Hz 500 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz
magnetic tripping limit	8 x In
[Ics] rated service breaking capacity	37,5 kA 75 % EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 18,75 kA 75 % EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 7,5 kA 75 % EN/IEC 60947-2 - 500 V AC 50/60 Hz 20 kA 100 % EN/IEC 60947-2 - <= 375 V DC
[Ui] rated insulation voltage	690 V AC 50/60 Hz EN/IEC 60947-2
[Uimp] rated impulse withstand voltage	8 kVEN/IEC 60947-2
contact position indicator	Yes
control type	Manual tripping test Toggle
local signalling	Trip indicator ON/OFF indication
mounting mode	Clip-on
mounting support	35 mm symmetrical DIN rail
comb busbar and distribution block compatibility	YES
9 mm pitches	9
height	103 mm
width	81 mm
depth	81 mm
net weight	0,72 kg
mechanical durability	20000 cycles
electrical durability	10000 cycles
provision for padlocking	Padlockable
locking options description	Integrated padlocking
connections - terminals	Tunnel type terminals 1,5…50 mm² rigid Tunnel type terminals 1…35 mm² flexible
wire stripping length	20 mm
tightening torque	3,5 N.m
earth-leakage protection	Separate block

Environment
standards	EN/IEC 60947-2
IP degree of protection	IP20 IEC 60529
IK degree of protection	IK05 EN/IEC 62262
pollution degree	3 IEC 60947-2
overvoltage category	IV
tropicalisation	2 IEC 60068-1
relative humidity	95 % 55 °C
ambient air temperature for operation	-30…70 °C
ambient air temperature for storage	-40…70 °C

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
Ilma SVHC REACh-ta	Jah
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Ennetav Hiina RoHS deklaratsioon (ei kuulu Hiina RoHS-i õigussfääri)
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
