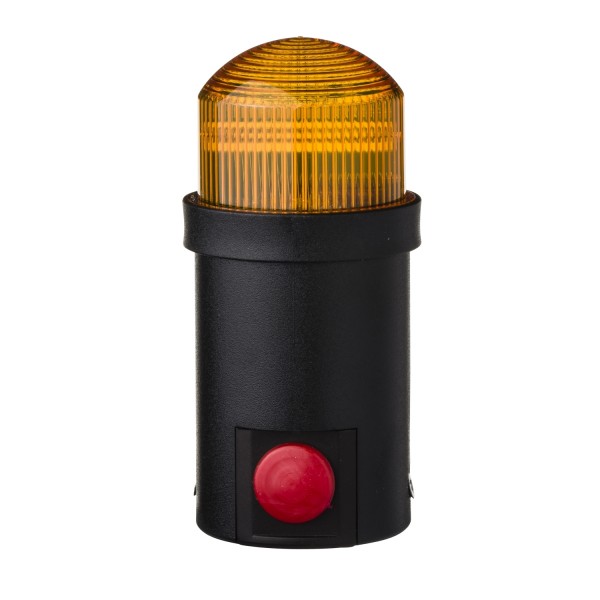

Ø 45 mm tower light - flashing - orange - IP40 - 24 V

Ülevaaded: 0

Tootekood: XVDLS6B5

Quick Overview

Saadavus: Tellimisel

222,74 € (ilma KM-ta)

Details

Main
range of product
Harmony XVD Optimum
product or component type
Complete miniature beacon
beacon or indicator bank unit type
Base unit direct fixing
Illuminated unit
signalling type
Flashing
mounting diameter
45 mm
component name
XVDLS
material
Glass reinforced polyamide: base unit
Polycarbonate: illuminated unit
light source
Integral flash discharge tube, orange
bulb type
Flash discharge tube
[Us] rated supply voltage
24 V AC/DC
Complementary
connections - terminals
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
cable entry
1 entry tapped for Pg 7
[Ui] rated insulation voltage
250 V conforming to IEC 60947-1
current consumption
< 145 mA DC
< 90 mA AC
[Uimp] rated impulse withstand voltage
IEC 60947-1 4 kV
flash energy
1 J
CAD overall width
45 mm
CAD overall height
104 mm
CAD overall depth
45 mm
terminals description ISO n°1
(GND)GROUND
(COM-1)PW
net weight
0.085 kg
Environment
product certifications
CSA
UL
standards
EN/IEC 60947-5-1
protective treatment
TC
ambient air temperature for operation
-10…50 °C
ambient air temperature for storage
-40…70 °C
electrical shock protection class
Class II conforming to IEC 60536
IP degree of protection
IP40 conforming to IEC 60529
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
