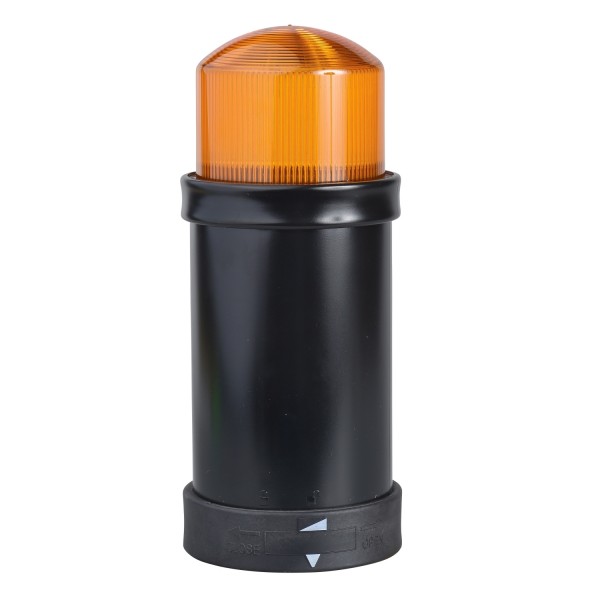

Ø 70 mm illuminated unit - flashing - orange - IP65 - 48 V

Product was successfully added to your shopping cart.

Ø 70 mm illuminated unit - flashing - orange - IP65 - 48 V

Tootekood: XVBC8E5

Quick Overview

Saadavus: Tellimisel

265,11 € (ilma KM-ta)

Qty:

Details

Main
range of product	Harmony XVB Universal
product or component type	Indicator bank
beacon or indicator bank unit type	Illuminated unit
signalling type	Flashing
mounting diameter	70 mm
component name	XVBC
material	Polycarbonate
light source	Integral flash discharge tube, orange
bulb type	Flash discharge tube
[Us] rated supply voltage	48 V AC/DC
flash energy	10 J

Complementary
assembly style	Customer assembly, up to 5 units
connections - terminals	Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage	250 V conforming to IEC 60947-1
nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
current consumption	< 400 mA DC < 650 mA AC
[Uimp] rated impulse withstand voltage	IEC 60947-1 4 kV
flashing frequency	1 Hz
net weight	0.315 kg

Environment
product certifications	CCC CSA C22-2 No 14 UL 508 GOST
standards	EN/IEC 60947-5-1
protective treatment	TC
ambient air temperature for storage	-40…70 °C
electrical shock protection class	Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140
IP degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
NEMA degree of protection	NEMA 4X conforming to UL 508 (indoor)

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Contractual warranty
Warranty	18 months
