  • Ø16mm Emergency stop, non-illuminated, Ø32mm head, turn/pull to release, 2NC

Product was successfully added to your shopping cart.

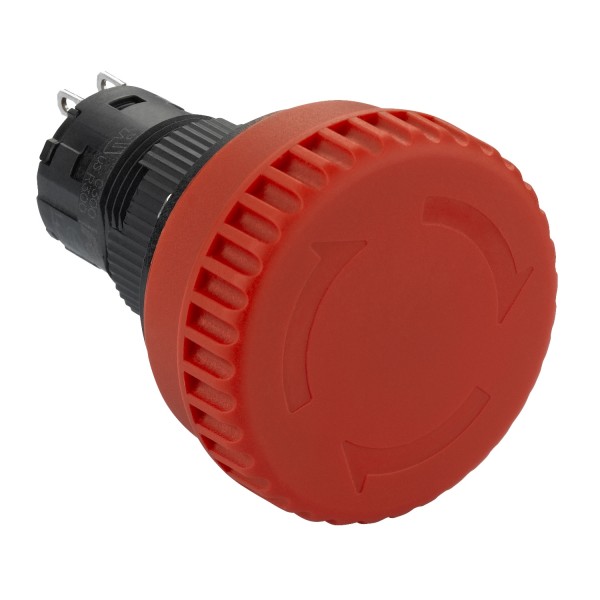

Ø16mm Emergency stop, non-illuminated, Ø32mm head, turn/pull to release, 2NC

Ülevaaded: 0

Tootekood: XB6ETN521P

Quick Overview

Saadavus: Tellimisel

16,70 € (ilma KM-ta)

Details

Main
range of product
Harmony XB6E
product or component type
Complete non-illuminated mushroom head push-button
device short name
XB6E
bezel material
Plastic
mounting diameter
32 mm
shape of signaling unit head
Round
type of operator
trigger action
reset
Pull to release
Turn to release
operator profile
Red mushroom Ø 32 mm
contacts type and composition
2 NC
connections - terminals
Solder terminal, clamping capacity: <= 0.75 mm² AWG 19
Complementary
net weight
0.0194 kg
marking
CE
mechanical durability
100000 cycles
tightening torque
0.6…1 N.m
short-circuit protection
6 A fuse type gG conforming to IEC 60269
[Ith] conventional free air thermal current
5 A
[Ui] rated insulation voltage
250 V (pollution degree 3)
insulation resistance
< 100 MOhm
[Uimp] rated impulse withstand voltage
2.5 kV
[Ie] rated operational current
1.5 A at 120 V, AC-12, C300 conforming to EN/IEC 60947-5-1
0.3 A at 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1
1 A at 240 V, AC-12, C300 conforming to EN/IEC 60947-5-1
0.3 A at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1
1 A at 24 V, DC-12, R300 conforming to EN/IEC 60947-5-1
0.7 A at 24 V, DC-13, R300 conforming to EN/IEC 60947-5-1
0.2 A at 125 V, DC-12, R300 conforming to EN/IEC 60947-5-1
0.15 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
electrical durability
1000000 cycles
50000 cycles, DC-13
Environment
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-10…55 °C
IP degree of protection
IP65 conforming to IEC 60529
standards
EN 60947-5-5
UL 508
JIS C8201-5-1
CSA C22.2 No 14
GB 14048.5
EN 60947-5-1
product certifications
UR
CCC
TÜV
vibration resistance
+/- 0.7 mm (f= 10…500 Hz)
shock resistance
500 m/s² for mechanical durability
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
