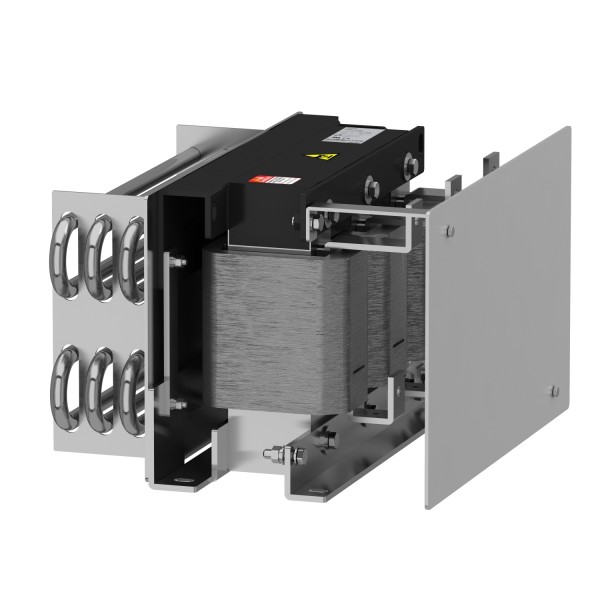

output dv/dt filter for variable speed drive - IP00

Ülevaaded: 0

Tootekood: VW3A5307

Quick Overview

Saadavus: Tellimisel

862,93 € (ilma KM-ta)

Details

Main
product or component type
Dv/dt filter
range compatibility
Easy Altivar 610
Altivar Process ATV900
Altivar Process ATV600
product specific application
Output filter
[In] rated current
305 A
product compatibility
ATV630 variable speed drive wall mount - 110 kW, 380...480 V
ATV630 variable speed drive wall mount - 132 kW, 380...480 V
ATV630 variable speed drive wall mount - 160 kW, 380...480 V
ATV630 variable speed drive wall mount - 55 kW, 200...240 V
ATV630 variable speed drive wall mount - 75 kW, 200...240 V
ATV610 variable speed drive - 110 kW, 380...415 V
ATV610 variable speed drive - 132 kW, 380...415 V
ATV610 variable speed drive - 160 kW, 380...415 V
ATV930 variable speed drive wall mount - 110 kW, 380...480 V
ATV930 variable speed drive wall mount - 132 kW, 380...480 V
ATV930 variable speed drive wall mount - 160 kW, 380...480 V
ATV930 variable speed drive wall mount - 55 kW, 200...240 V
ATV930 variable speed drive wall mount - 75 kW, 200...240 V
nedded quantity
1
electrical connection
Copper bar M10
Complementary
maximum motor cable length
500 m unshielded cable
300 m shielded cable at 2.5 kHz
dV/dt
6000 V/µs max at 200...240 V
6000 V/µs max at 380...480 V
thermal losses
287 W at 4 kHz
maximum drive output frequency
100 Hz
ambient air temperature for operation
-10…50 °C (without current derating)
50…60 °C (with current derating 1.5 % per °C)
operating altitude
0...1000 m without current derating
1000...4000 m with current derating 1 % per 100 m
width
420 mm
height
350 mm
depth
270 mm
net weight
40 kg
Environment
IP degree of protection
IP00
ambient air temperature for storage
-40…70 °C
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
