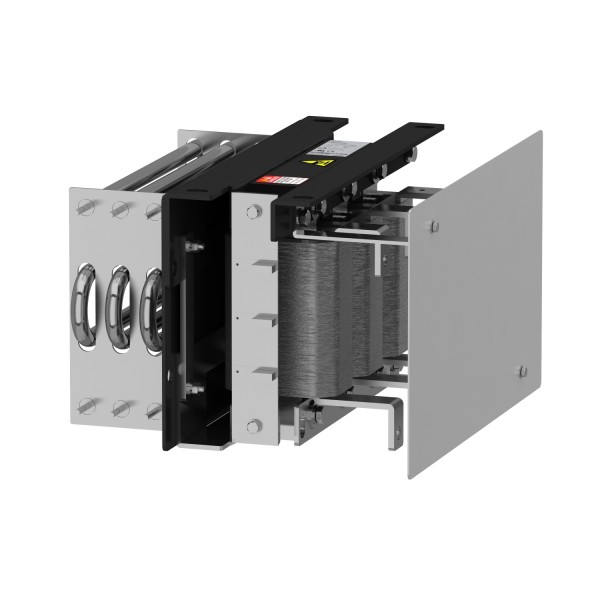

output dv/dt filter for variable speed drive - IP00

Dv/dt filter

Altivar Process ATV900
Easy Altivar 610
Altivar Process ATV600
Altivar Machine ATV340

Output filter

180 A

ATV630 variable speed drive wall mount - 30 kW, 200...240 V
ATV630 variable speed drive wall mount - 37 kW, 200...240 V
ATV630 variable speed drive wall mount - 45 kW, 200...240 V
ATV630 variable speed drive wall mount - 55 kW, 380...480 V
ATV630 variable speed drive wall mount - 75 kW, 380...480 V
ATV630 variable speed drive wall mount - 90 kW, 380...480 V
ATV650 variable speed drive wall mount - 55 kW, 380...480 V
ATV650 variable speed drive wall mount - 75 kW, 380...480 V
ATV650 variable speed drive wall mount - 90 kW, 380...480 V
ATV610 variable speed drive - 55 kW, 380...415 V
ATV610 variable speed drive - 75 kW, 380...415 V
ATV610 variable speed drive - 90 kW, 380...415 V
ATV930 variable speed drive wall mount - 30 kW, 200...240 V
ATV930 variable speed drive wall mount - 37 kW, 200...240 V
ATV930 variable speed drive wall mount - 45 kW, 200...240 V
ATV930 variable speed drive wall mount - 55 kW, 380...480 V
ATV930 variable speed drive wall mount - 75 kW, 380...480 V
ATV930 variable speed drive wall mount - 90 kW, 380...480 V
ATV950 variable speed drive wall mount - 55 kW, 380...480 V
ATV950 variable speed drive wall mount - 75 kW, 380...480 V
ATV950 variable speed drive wall mount - 90 kW, 380...480 V

1

Copper bar M10

500 m unshielded cable at 4 kHz
300 m shielded cable at 2.5 kHz

3000 V/µs max at 200...240 V
3000 V/µs max at 380...480 V

176 W at 4 kHz

100 Hz

-10…50 °C (without current derating)
50…60 °C (with current derating 1.5 % per °C)

0...1000 m without current derating
1000...4000 m with current derating 1 % per 100 m

380 mm

325 mm

235 mm

22 kg

IP00

-40…70 °C

Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration

Yes

Yes
