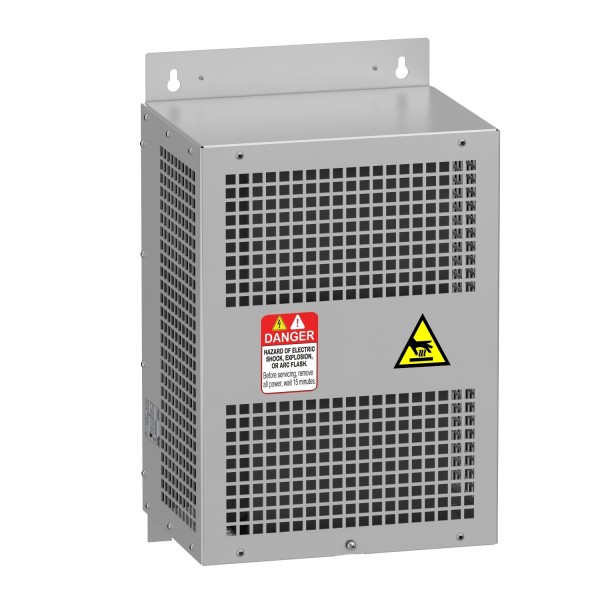

output dv/dt filter for variable speed drive - IP20

Tootekood: VW3A5301

Quick Overview

Saadavus: Tellimisel

197,49 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Dv/dt filter
range compatibility	Altivar Process ATV600 Altivar Process ATV900 Easy Altivar 610 Altivar Machine ATV340
product specific application	Output filter
[In] rated current	6 A
product compatibility	ATV630 variable speed drive wall mount - 0.75 kW, 380...480 V ATV630 variable speed drive wall mount - 1.5 kW, 380...480 V ATV630 variable speed drive wall mount - 2.2 kW, 380...480 V ATV630 variable speed drive wall mount - 0.75 kW, 200...240 V ATV650 variable speed drive wall mount - 0.75 kW, 380...480 V ATV650 variable speed drive wall mount - 1.5 kW, 380...480 V ATV650 variable speed drive wall mount - 2.2 kW, 380...480 V ATV610 variable speed drive - 0.75 kW, 380...415 V ATV610 variable speed drive - 1.5 kW, 380...415 V ATV610 variable speed drive - 2.2 kW, 380...415 V ATV930 variable speed drive wall mount - 0.75 kW, 380...480 V ATV930 variable speed drive wall mount - 1.5 kW, 380...480 V ATV930 variable speed drive wall mount - 2.2 kW, 380...480 V ATV930 variable speed drive wall mount - 0.75 kW, 200...240 V ATV950 variable speed drive wall mount - 0.75 kW, 380...480 V ATV950 variable speed drive wall mount - 1.5 kW, 380...480 V ATV950 variable speed drive wall mount - 2.2 kW, 380...480 V
nedded quantity	1
electrical connection	Terminal block, connection capacity: 4 mm² / AWG 12

Complementary
maximum motor cable length	300 m unshielded cable at 4 kHz 300 m shielded cable at 4 kHz
dV/dt	3000 V/µs max at 200...240 V 3000 V/µs max at 380...480 V
thermal losses	16 W at 4 kHz
maximum drive output frequency	100 Hz
ambient air temperature for operation	-10…50 °C (without current derating) 50…60 °C (with current derating 1.5 % per °C)
operating altitude	0...1000 m without current derating 1000...4000 m with current derating 1 % per 100 m
width	285 mm
height	530 mm
depth	215 mm
net weight	11 kg

Environment
IP degree of protection	IP20 IP21 (with kit VW3A53902)
ambient air temperature for storage	-40…70 °C

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
