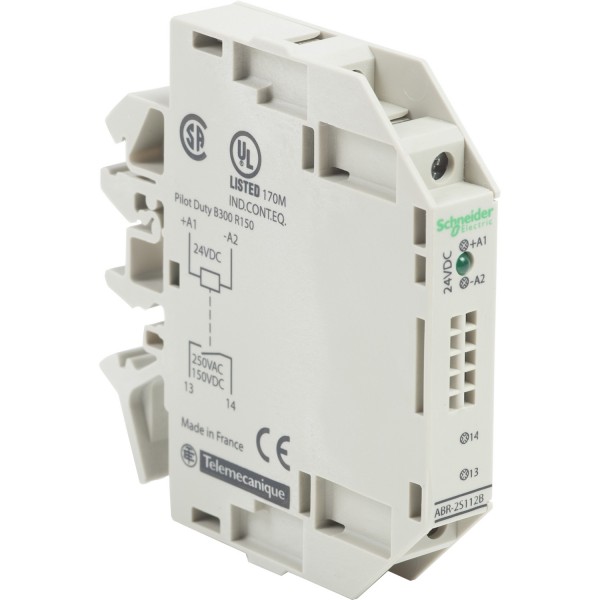

output interface module - 9.5 mm - electromechanical - 24 V DC

Details

Main
range of product	Interface for discrete signals
product or component type	Slim electromechanical output interface module
contacts type and composition	1 NO
[Uc] control circuit voltage	24 V
control circuit type	DC
width pitch dimension	12 mm
maximum [In] rated current	18 mA
reverse polarity protection	With
short-circuit protection	6,3 A external fuse fast blow Ik <= 1 kA AC and Ik <= 100 A DC)
[Ith] conventional free air thermal current	5 A IEC 60947-1
local signalling	Green mechanical indicator for position of contacts
sale per indivisible quantity	5

Complementary
control circuit voltage limits	28.8 V 14.5 V
connections - terminals	Screw clamp terminal
drop-out voltage	2 V
holding current	1,3 mA
power dissipation in W	0,43 W
maximum switching voltage	150 V DC 250 V AC
[Ue] rated operational voltage	<= 120 V DC IEC 60947-5-1 <= 230 V AC IEC 60947-5-1
network frequency	50/60 Hz
[Ie] rated operational current	1 A AC-14 Ue: 230 V 1000000 cycles IEC 60947-5-1 1 A AC-15 Ue: 230 V 1000000 cycles IEC 60947-5-1 3 A AC-12 Ue: 230 V 1000000 cycles IEC 60947-5-1 1,5 A DC-13 Ue: 24 V 1000000 cycles IEC 60947-5-1 1,7 A DC-12 Ue: 24 V 1000000 cycles IEC 60947-5-1
minimum switching current	5 mA
minimum switching voltage	5 V
electrical reliability	<= 0.00000001
operating time	<= 10 ms between energisation of coil and closing of NO contact DC <= 5 ms between de-energisation of coil and closing of NO contact DC
contact bounce time	<= 5 ms
operating rate in Hz	10 Hz at no-load 0,5 Hz at Ie
mechanical durability	10000000 cycles
[Ui] rated insulation voltage	250 V VDE 0110 group C 300 V IEC 60947-1
flame retardance	V0 UL 94
cable cross section	0,34…2,5 mm², 1 or 2 wires flexible with cable end 0,6…2,5 mm², 1 or 2 wires flexible without cable end 0,27…4 mm², 1 wire rigid
operating position	Any position
installation category	II IEC 60947-1
mounting support	Symmetrical DIN rail Asymmetrical DIN rail Combination rail
net weight	0,04 kg

Environment
immunity to microbreaks	5 ms
dielectric strength	1000 V for 1 minute between open contacts 2500 V for 1 minute between wired interface and earth 4000 V for 1 minute between coil circuit and contact circuits
standards	IEC 60947-5-1
product certifications	BV CSA DNV LROS (Lloyds register of shipping) UL
IP degree of protection	IP20 IEC 60529
protective treatment	TC
fire resistance	960 °C IEC 60695-2-1
shock resistance	30 gn 11 ms IEC 60068-2-27
vibration resistance	3 gn 10…150 Hz)IEC 60068-2-6
electromagnetic compatibility	Electromagnetic field immunity test level 3 10 V/m between 27...1000 MHz IEC 61000-4-3 Electrostatic discharge immunity test level 3 8 kV IEC 61000-4-2 Fast transients immunity test level 3 on input/output 1 kV IEC 61000-4-4 Fast transients immunity test level 3 on power supply 2 kV IEC 61000-4-4 1.2/50 µs shock waves immunity test IEC 60947-1 1.2/50 µs shock waves immunity test IEC 60947-1 1.2/50 µs shock waves immunity test IEC 60947-1
ambient air temperature for operation	-25…55 °C at Us -25…70 °C at Us with 8 mm space between ABR2S1... -5…40 °C unrestricted operation -5…55 °C from 0.85...1.1 Us
ambient air temperature for storage	-40…80 °C
operating altitude	<= 3000 m
pollution degree	2 IEC 60947-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
Keskkonnaalane avaldus	Toote keskkonnaprofiil
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
