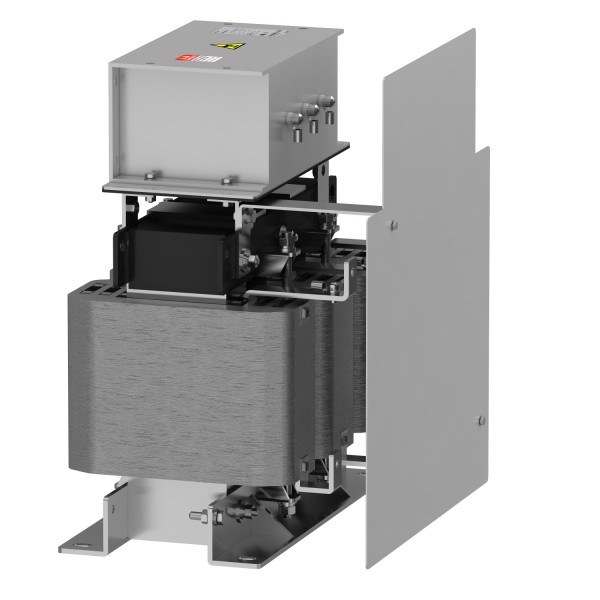

output sinus filter - 180 A - for variable speed drive

Ülevaaded: 0

Tootekood: VW3A5406

Quick Overview

Saadavus: Tellimisel

2 103,19 € (ilma KM-ta)

Details

Main
product or component type
Sinus filter
range compatibility
Altivar Process ATV900
Altivar Process ATV600
product specific application
Output filter
Complementary
maximum motor cable length
1000 m unshielded cable
500 m shielded cable
[In] rated current
180 A
thermal losses
411 W at 4 kHz
product compatibility
Variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V
Variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V
Variable speed drive ATV630 wall mount, motor: 45 kW, 200...240 V
Variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V
Variable speed drive ATV630 wall mount, motor: 75 kW, 380...480 V
Variable speed drive ATV630 wall mount, motor: 90 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 75 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 90 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 45 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 75 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 90 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 75 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 90 kW, 380...480 V
electrical connection
M10 copper bar
operating altitude
<= 1000 m without current derating
1000...4000 m with current derating 1 % per 100 m
switching frequency
2...8 kHz
maximum output frequency
100 Hz
maximum voltage drop at rated load
8 %
permissible voltage
480 V AC
max current
1.20 x nominal current (duration = 60 s)
width
430 mm
height
325 mm
depth
495 mm
net weight
90 kg
Environment
IP degree of protection
IP00
environmental characteristic
Biological pollution resistance class 3B1 conforming to IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
pollution degree
3 conforming to IEC 61800-5-1
relative humidity
5…95 % without condensation
ambient air temperature for operation
50…60 °C (with current derating 1.5 % per °C)
-15…50 °C (without current derating)
ambient air temperature for storage
-40…70 °C
mechanical robustness
Shocks class 3M4 conforming to IEC 60721-3-3
Vibrations class 3M4 conforming to IEC 60721-3-3
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
