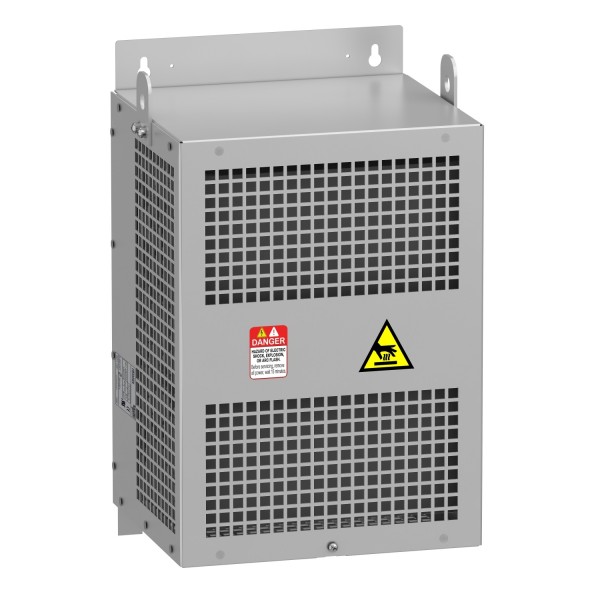

output sinus filter - 50 A - for variable speed drive

Ülevaaded: 0

Tootekood: VW3A5404

Quick Overview

Saadavus: Tellimisel

869,52 € (ilma KM-ta)

Details

Main
product or component type
Sinus filter
range compatibility
Altivar Process ATV600
Altivar Process ATV900
product specific application
Output filter
Complementary
maximum motor cable length
1000 m unshielded cable
500 m shielded cable
[In] rated current
50 A
thermal losses
196 W at 4 kHz
product compatibility
Variable speed drive ATV630 wall mount, motor: 11 kW, 200...240 V
Variable speed drive ATV630 wall mount, motor: 15 kW, 380...480 V
Variable speed drive ATV630 wall mount, motor: 18.5 kW, 380...480 V
Variable speed drive ATV630 wall mount, motor: 22 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 15 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 18.5 kW, 380...480 V
Variable speed drive ATV650 wall mount, motor: 22 kW, 380...480 V
Variable speed drive ATV630 wall mount, motor: 5.5 kW, 200...240 V
Variable speed drive ATV630 wall mount, motor: 7.5 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 11 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 15 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 18.5 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 22 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 15 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 18.5 kW, 380...480 V
Variable speed drive ATV950 wall mount, motor: 22 kW, 380...480 V
Variable speed drive ATV930 wall mount, motor: 5.5 kW, 200...240 V
Variable speed drive ATV930 wall mount, motor: 7.5 kW, 200...240 V
electrical connection
terminal block, connection capacity: 16 mm² / AWG 4
operating altitude
<= 1000 m without current derating
1000...4000 m with current derating 1 % per 100 m
switching frequency
2...8 kHz
maximum output frequency
100 Hz
maximum voltage drop at rated load
8 %
permissible voltage
480 V AC
max current
1.20 x nominal current (duration = 60 s)
width
300 mm
height
560 mm
depth
245 mm
net weight
35 kg
Environment
IP degree of protection
IP20
IP21 (with kit VW3A53903)
environmental characteristic
Biological pollution resistance class 3B1 conforming to IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to IEC 60721-3-3
pollution degree
3 conforming to IEC 61800-5-1
relative humidity
5…95 % without condensation
ambient air temperature for operation
50…60 °C (with current derating 1.5 % per °C)
-15…50 °C (without current derating)
ambient air temperature for storage
-40…70 °C
mechanical robustness
Shocks class 3M4 conforming to IEC 60721-3-3
Vibrations class 3M4 conforming to IEC 60721-3-3
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Contractual warranty
Warranty
18 months
