Details
Characteristics
| range of product | XR and XF | |
|---|---|---|

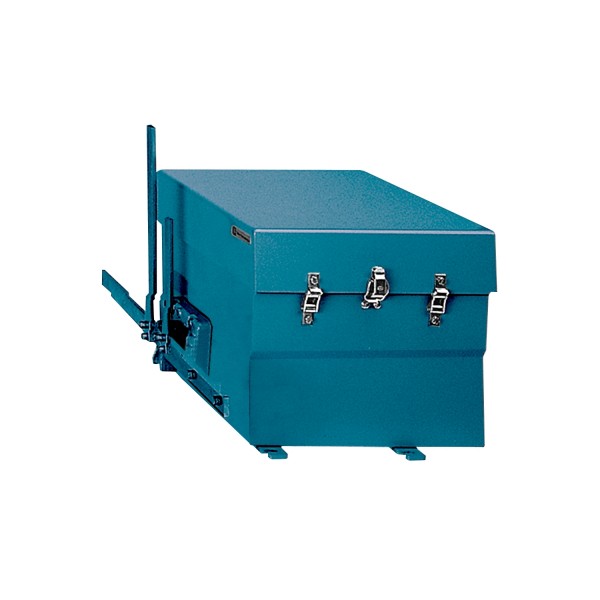

| product or component type | Overtravel limit switches | |
| device short name | XF9 | |
| electrical circuit type | Power circuit | |
| product specific application | Safety of hoisting equipment | |
| material | Sheet steel: enclosure | |
| type of operator | Manual latching | |
| number of poles | 3 | |
| [Ie] rated operational current | AC-3, Ie = 185 A 3-pole scheme |
| reset | Manual reset | |
|---|---|---|
| switch actuation | Horizontal and vertical approach | |
| contacts type and composition | Without auxiliary contact block | |
| contact operation | Snap action | |
| [Ithe] conventional enclosed thermal current | 275 A at -25…40 °C 3-pole scheme | |
| [Ui] rated insulation voltage | 660 V conforming to IEC 158-1660 V conforming to IEC 947-4660 V conforming to VDE 0110 group C600 V conforming to CSA C22.2 No 14 | |
| rated breaking capacity | 1200 kA at 660 V 2-pole scheme conforming to IEC 158-11600 kA at 500 V 2-pole scheme conforming to IEC 158-1 | |
| cable cross section | 1 solid cable 150 mm² with cable end2 solid cable 150 mm² with cable end | |
| cable entry | 2 entries tapped for Pg 36 cable gland | |
| net weight | 27.5 kg |
| standards | VDE 0660IEC 947-1NF C 63-110IEC 947-4IEC 158-1 | |
|---|---|---|
| product certifications | CSA | |
| protective treatment | TC | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…70 °C | |
| IP degree of protection | IP43 conforming to EN/IEC 60529 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope |
| Warranty | 18 months |
|---|
