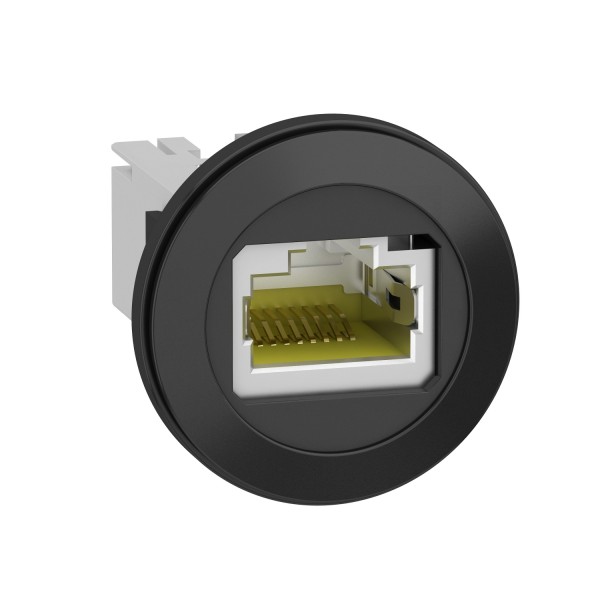

Panel mounted RJ45 port, plastic, Ø22, for ethernet interface, RJ45 jack

Details

Complementary
sale per indivisible quantity	1
mounting diameter	22 mm
thickness	6 mm without protection cover 1.5…5 mm with protection cover plastic 1.5…5 mm with protection cover rigid plastic 1.5…2.5 mm with protection cover metal
bezel material	Plastic
fixing collar material	Plastic
integrated connection type	RJ45 Ethernet 10 Gbit/s
minimum number of matings	750 cycles
IP degree of protection	IP20 front: conforming to IEC 60529 IP20 back: conforming to IEC 60529
ambient air temperature for operation	-40…70 °C
ambient air temperature for storage	-40…70 °C
tightening torque	1.5 N.m
vibration resistance	5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
standards	IEC 60603-7
product certifications	UL listed CSA
height	28 mm
width	28 mm
depth	36 mm
net weight	0.0266 kg

Offer Sustainability
Sustainable offer status	Green Premium product
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
