Details
Characteristics
| range of product | OsiSense XG | |
|---|---|---|

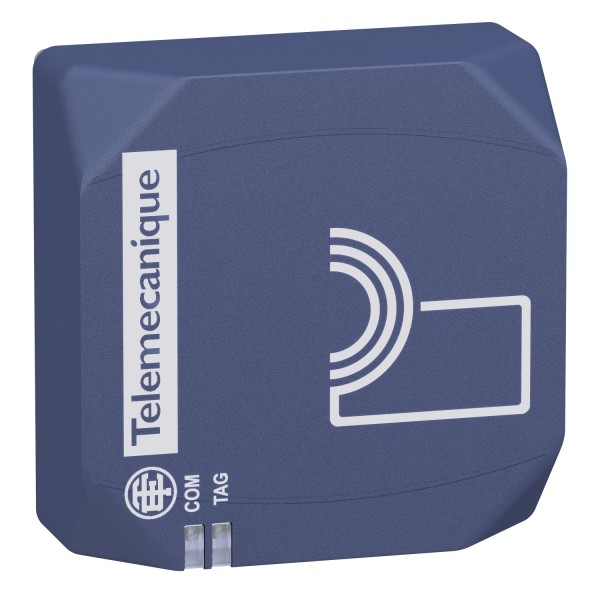

| product or component type | Panel mounting smart antenna | |
| RFID compact station name | XGCS | |
| RFID frequency | 13.56 MHz | |
| design | Diameter 22 mounting | |
| electrical connection | 5 pin(s)1 male connector M12 | |
| transmission rate | 9600 bauds...115200 bauds (automatic detection) | |
| outer dimension | 40 x 40 x 40 mm | |
| product compatibility | RFID microchip Microelectronic (EM4135)RFID microchip Fujitsu (MB89R118 - MB89R119)RFID microchip INSIDE (micropass)RFID microchip Texas (Tag-it HFI)RFID microchip STM (CRIX4K)RFID microchip NXP (SL2, SL1, Ultralight, Std 1K/4K, Desfire) | |
| [Sn] nominal sensing distance | 10…70 mm | |
| [Us] rated supply voltage | 24 V DC conforming to Protective Extra Low Voltage |
| communication port protocol | Modbus RTU | |
|---|---|---|
| communication port support | RS485 non isolated | |
| associated tag type | ISO 15693 standard tagsISO 14443 standard tagsAutomatic detection of the type of tag | |
| supply voltage limits | 19.2…29 V DC | |
| current consumption | < 60 mA | |
| status LED | Communication network: 1 LED (dual colour)RFID communication: 1 LED (dual colour) | |
| tightening torque | < 2.2 N.m | |
| marking | CE | |
| net weight | 0.057 kg |
| product certifications | UL, FCC | |
|---|---|---|
| standards | ETSI EN 301 489-3ETSI EN 301 489-1ETSI EN 300 330-2ETSI EN 300 330-1 | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…85 °C | |
| IP degree of protection | IP65 conforming to IEC 60529 | |
| vibration resistance | 2 mm (f= 5…29.5 Hz) conforming to EN 60068-2-67 gn (f= 29.5…150 Hz) conforming to EN 60068-2-6 | |
| shock resistance | 30 gn for 11 ms conforming to EN 60068-2-27 | |
| IK degree of protection | IK02 conforming to EN 50102 | |
| electromagnetic compatibility | Electrostatic discharge immunity test: (contact discharge), 3, 6 kV, conforming to IEC 61000-4-2Electrostatic discharge immunity test: (air discharge), 3, 8 kV, conforming to IEC 61000-4-2Electrical fast transient/burst immunity test: (signal ports), 3, 1 kV, conforming to IEC 61000-4-4Electrical fast transient/burst immunity test: (power ports), 3, 2 kV, conforming to IEC 61000-4-4Susceptibility to electromagnetic fields: , 3, 10 V/m, conforming to IEC 61000-4-31.2/50 µs shock waves immunity test: , 3, 10 kV, conforming to IEC 61000-4-5Conducted RF disturbances: , 3, 10 V, conforming to IEC 61000-4-6Magnetic field at power frequency: , 4, 30 A/m, conforming to IEC 61000-4-8 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Not applicable, out of EU RoHS legal scope |
