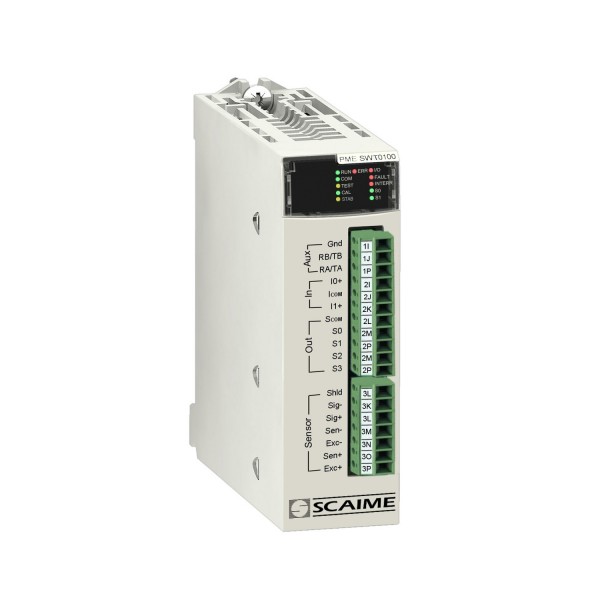

Partner Module Ethernet System Weighing Transmitter

Details

Main
range of product	Modicon X80
product or component type	Weighing transmitter module

Complementary
product compatibility	BMEXBP... backplane Head module BMECRA31210 BMEP58... processor
power consumption in W	3,5 W
number of measurement input	1
input voltage	5 V DC
resolution	24 bits internal 1000000 points user factory calibrated 500000 at 2 mV/V
measuring rate	6...400 measurements per second internal 100 measurements per second external
output type	Reflex digital output
discrete output number	4 positive logic (source) total 2 for dosing 2 for threshold monitoring
discrete output voltage	<= 55 V DC
nominal output current	400 mA
response time	2 ms
discrete input number	2 positive logic for weighing functions
voltage state 0 guaranteed	0...3 V DC
voltage state 1 guaranteed	9...28 V DC
discrete input current	20 mA 24 V
status LED	Module operating (RUN) 1 LED green) Module error (ERR) 1 LED red) External fault (I/O) 1 LED red) Communication (COM) 1 LED green) Test mode (TEST) 1 LED yellow) Calibration (CAL) 1 LED green) Converter error (FAULT) 1 LED red) Memory corruption (MEM ERR) 1 LED red) Digital output status (S0) 1 LED green) Digital output status (S1) 1 LED green)
net weight	0,233 kg

Offer Sustainability
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Mürgiste raskemetallideta	Jah
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
