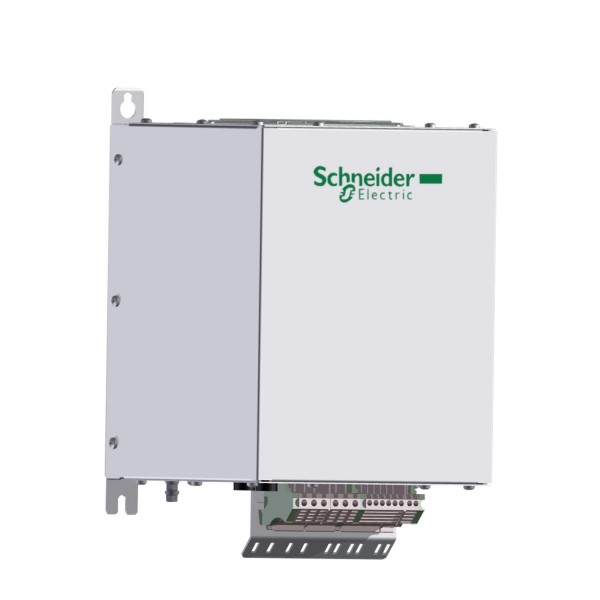

passive filter - 10 A - 400 V - 50 Hz - for variable speed drive

Ülevaaded: 0

Tootekood: VW3A46102

Quick Overview

Saadavus: Tellimisel

1 235,78 € (ilma KM-ta)

Details

Main
product or component type
Passive filter
product specific application
Reduction of current harmonics
Complementary
range compatibility
Altivar 61
Altivar Process ATV900
Altivar Process ATV600
Altivar 71
[Us] rated supply voltage
400 V +/- 10 %
power supply frequency
50 Hz +/- 2 %
quantity per drive
1 filter per drive for variable speed drive ATV61W motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV61W motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV61H motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV61H motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV71H motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV71H motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV71P motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV71P motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV71W motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV71W motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV630 wall mount, motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV630 wall mount, motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV650 wall mount, motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV650 wall mount, motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV930 wall mount, motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV930 wall mount, motor: 5.5 kW/7.5 hp
1 filter per drive for variable speed drive ATV950 wall mount, motor: 4 kW/5 hp
1 filter per drive for variable speed drive ATV950 wall mount, motor: 5.5 kW/7.5 hp
[In] rated current
10 A for input
10.4 A for output
network number of phases
3 phases
THDI
10 % for variable speed drive ATV61W motor: 4 kW/5 hp
10 % for variable speed drive ATV61W motor: 5.5 kW/7.5 hp
16 % for variable speed drive ATV61H motor: 4 kW/5 hp
16 % for variable speed drive ATV61H motor: 5.5 kW/7.5 hp
16 % for variable speed drive ATV71H motor: 4 kW/5 hp
16 % for variable speed drive ATV71H motor: 5.5 kW/7.5 hp
16 % for variable speed drive ATV71P motor: 4 kW/5 hp
16 % for variable speed drive ATV71P motor: 5.5 kW/7.5 hp
16 % for variable speed drive ATV71W motor: 4 kW/5 hp
16 % for variable speed drive ATV71W motor: 5.5 kW/7.5 hp
10 % for variable speed drive ATV630 motor: 4 kW/5 hp
10 % for variable speed drive ATV630 motor: 5.5 kW/7.5 hp
10 % for variable speed drive ATV650 motor: 4 kW/5 hp
10 % for variable speed drive ATV650 motor: 5.5 kW/7.5 hp
10 % for variable speed drive ATV930 motor: 4 kW/5 hp
10 % for variable speed drive ATV930 motor: 5.5 kW/7.5 hp
10 % for variable speed drive ATV950 motor: 4 kW/5 hp
10 % for variable speed drive ATV950 motor: 5.5 kW/7.5 hp
max current
1.5 x nominal current (duration = 60 s)
efficiency
98 %
thermal losses
93 W
cos phi
1 (150 % of line current)
0.85 (75 % of line current)
0.99 (100 % of line current)
electrical connection
X1-1...X2-3 terminal, connection capacity: 0.5...10 mm²
A, B terminal, connection capacity: 2.5 mm²
electrical insulation class
Class F
net weight
13.5 kg
Environment
IP degree of protection
IP20
IP55 (enclosure mounting)
vibration resistance
2 mm peak to peak (f= 5…13.2 Hz) conforming to EN 60068-2-6
0.7 gn (f= 13.2…150 Hz) conforming to EN 60068-2-6
relative humidity
5…85 % without condensation
ambient air temperature for operation
45…60 °C (with current derating 3 % per °C)
5…45 °C (without current derating)
ambient air temperature for storage
-25…55 °C storage in original packaging
-25…65 °C during transport
operating altitude
<= 1000 m without current derating
> 1000...4000 m with current derating 5 % per 1000 m
standards
EN/IEC 61000-2-4
EN/IEC 61000-2-2
EN/IEC 61000-3-4
EN/IEC 61000-3-12
EN/IEC 61000-3-2
G5/4 engineering recommendation
Offer Sustainability
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
