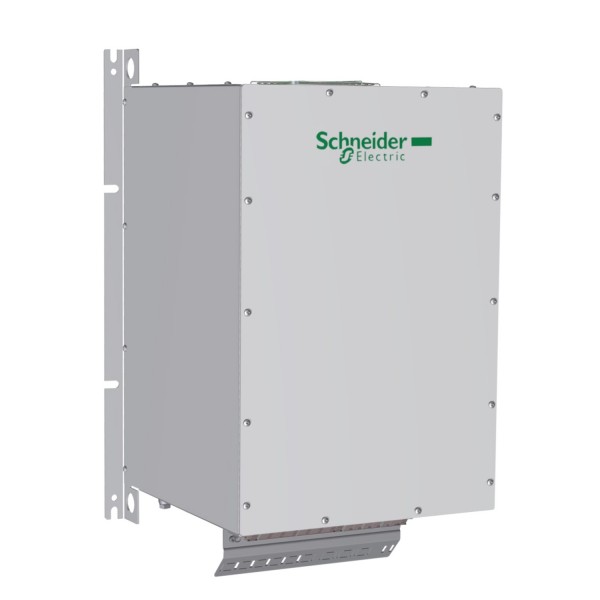

passive filter - 60 A - 400 V - 50 Hz - for variable speed drive

Tootekood: VW3A46108

Quick Overview

Saadavus: Tellimisel

3 467,64 € (ilma KM-ta)

Qty:

Details

Main
product or component type	Passive filter
product specific application	Reduction of current harmonics

Complementary
range compatibility	Altivar 71 Altivar Process ATV600 Altivar 61 Altivar Process ATV900
[Us] rated supply voltage	400 V +/- 10 %
power supply frequency	50 Hz +/- 2 %
quantity per drive	1 filter per drive for variable speed drive ATV61W motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV61H motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV71H motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV71W motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV650 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV630 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV950 wall mount, motor: 30 kW/40 hp 1 filter per drive for variable speed drive ATV930 wall mount, motor: 30 kW/40 hp
[In] rated current	58 A for input 60 A for output
network number of phases	3 phases
THDI	10 % for variable speed drive ATV61W motor: 30 kW/40 hp 16 % for variable speed drive ATV61H motor: 30 kW/40 hp 16 % for variable speed drive ATV71H motor: 30 kW/40 hp 16 % for variable speed drive ATV71W motor: 30 kW/40 hp 10 % for variable speed drive ATV650 motor: 30 kW/40 hp 10 % for variable speed drive ATV630 motor: 30 kW/40 hp 10 % for variable speed drive ATV950 motor: 30 kW/40 hp 10 % for variable speed drive ATV930 motor: 30 kW/40 hp
max current	1.5 x nominal current (duration = 60 s)
efficiency	98 %
thermal losses	352 W
cos phi	1 (150 % of line current) 0.85 (75 % of line current) 0.99 (100 % of line current)
electrical connection	A, B terminal, connection capacity: 2.5 mm² X1-1...X2-3 terminal, connection capacity: 2.5...25 mm²
electrical insulation class	Class F
net weight	44 kg

Environment
IP degree of protection	IP20 IP55 (enclosure mounting)
vibration resistance	2 mm peak to peak (f= 5…13.2 Hz) conforming to EN 60068-2-6 0.7 gn (f= 13.2…150 Hz) conforming to EN 60068-2-6
relative humidity	5…85 % without condensation
ambient air temperature for operation	45…60 °C (with current derating 3 % per °C) 5…45 °C (without current derating)
ambient air temperature for storage	-25…55 °C storage in original packaging -25…65 °C during transport
operating altitude	<= 1000 m without current derating > 1000...4000 m with current derating 5 % per 1000 m
standards	EN/IEC 61000-2-4 EN/IEC 61000-3-12 EN/IEC 61000-3-4 EN/IEC 61000-3-2 EN/IEC 61000-2-2 G5/4 engineering recommendation

Offer Sustainability
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
