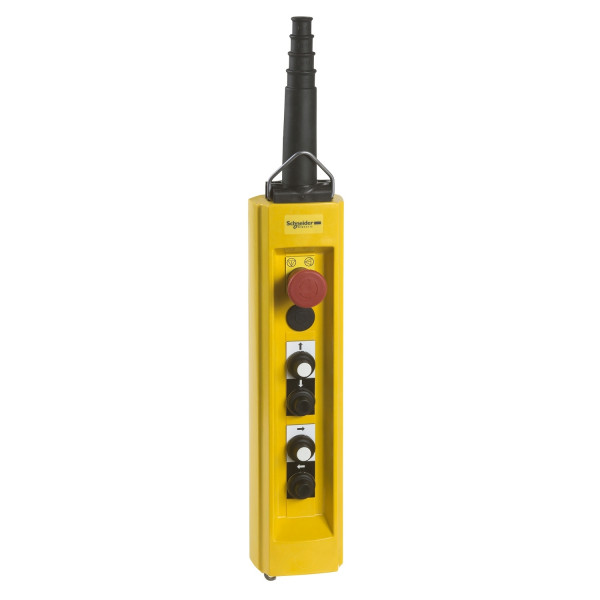

pendant control station XAC-B - 4 pushbuttons 1 Emergency stop

Ülevaaded: 0

Tootekood: XACB4933

Quick Overview

Saadavus: Tellimisel

180,83 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Pendant control station
device short name
XACB
Complementary
control station type
Double insulated
enclosure material
Glass reinforced polyester
electrical circuit type
Power circuit
enclosure type
Complete ready for use
control station application
Control of single speed hoist motor
control station composition
4 push-buttons + 1 emergency stop
control button type
Stop push-button Ø 40 mm 3 NC latching
First push-button 3-pole raise, slow
Second push-button 3-pole lower, slow
Fourth push-button 3-pole left, slow
Third push-button 3-pole right, slow
product compatibility
XESD2201 for reversing operation
XACS499 for emergency stop
mechanical interlocking
With mechanical interlocking between pairs
control station colour
Yellow
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
standards
EN/IEC 60204-32
CSA C22.2 No 14
EN/IEC 60947-5-1
product certifications
CSA type 4
protective treatment
TH
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
shock resistance
100 gn IEC 60068-2-27
overvoltage category
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
mechanical durability
1000000 cycles
cable entry
Rubber sleeve with stepped entry 10…22 mm
[Ithe] conventional enclosed thermal current
20 A
[Ui] rated insulation voltage
Emergency stop contact 400 V 3)IEC 60947-1
300 VCSA
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
contact operation
Snap action
operating force
32 N push-button
40 N emergency stop
short-circuit protection
12 A fuse protection cartridge aM
rated power in hp
3 hp 240 V
rated operational power in W
3000 W 240 V
3000 W 400 V
electrical durability
1000000 cycles AC-3, 3000 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
1000000 cycles AC-4, 3000 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
700000 cycles AC-3, 3000 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
700000 cycles AC-4, 3000 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
terminals description ISO n°1
(33-34)NO
(23-24)NO
(13-14)NO
(53-54)NO
(73-74)NO
(63-64)NO
terminals description ISO n°2
(31-32)NC
(21-22)NC
(11-12)NC
terminal identifier
(11-12)NC
(13-14)NO
net weight
1,39 kg
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
