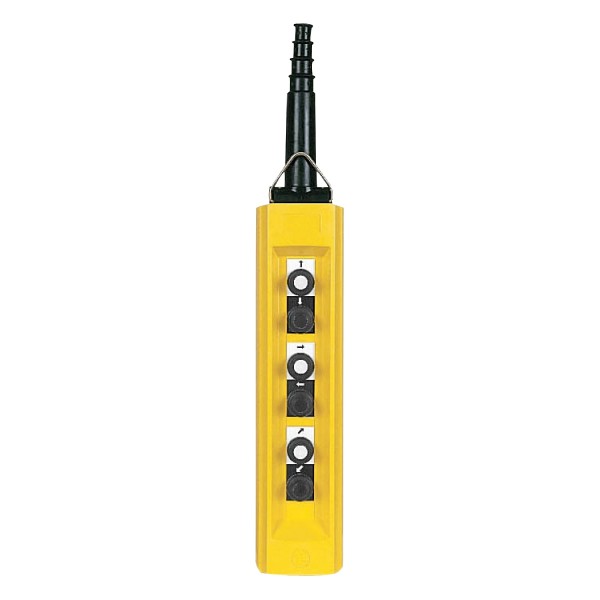

pendant control station XAC-B - 6 pushbuttons

Ülevaaded: 0

Tootekood: XACB681

Quick Overview

Saadavus: Ei saa enam tellida

117,59 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Pendant control station
device short name
XACB
Complementary
control station type
Double insulated
enclosure material
Glass reinforced polyester
electrical circuit type
Control circuit
enclosure type
Complete ready for use
control station application
Control of single speed hoist motor
control station composition
6 push-buttons
control button type
First push-button raise, slow
Second push-button lower, slow
Fourth push-button left, slow
Third push-button right, slow
Fifth push-button forward slow
Sixth push-button reverse, slow
product compatibility
XESB2011 for reversing operation
mechanical interlocking
Without mechanical interlock
control station colour
Yellow
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
standards
CSA C22.2 No 14
EN/IEC 60204-32
EN/IEC 60947-5-1
product certifications
CSA 300V type 4
protective treatment
TH
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
shock resistance
100 gn IEC 60068-2-27
overvoltage category
Class II
IP degree of protection
IP65 IEC 60529
IK degree of protection
IK08 EN 50102
mechanical durability
1000000 cycles
cable entry
Rubber sleeve with stepped entry 10…22 mm
contact code designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0,27 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
contact operation
Snap action
maximum resistance across terminals
25 MOhm
operating force
7 N push-button
short-circuit protection
10 A fuse protection cartridge gG
rated operational power in VA
100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0,5 inductive
450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0,5 inductive
50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0,5 inductive
750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0,5 inductive
rated operational power in W
140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0,5 inductive IEC 60947-5-1 appendix C
140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0,5 inductive IEC 60947-5-1 appendix C
95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0,5 inductive IEC 60947-5-1 appendix C
terminals description ISO n°1
(1-2-3-4)OC
terminal identifier
(11-12)NC
(13-14)NO
net weight
1,3 kg
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
