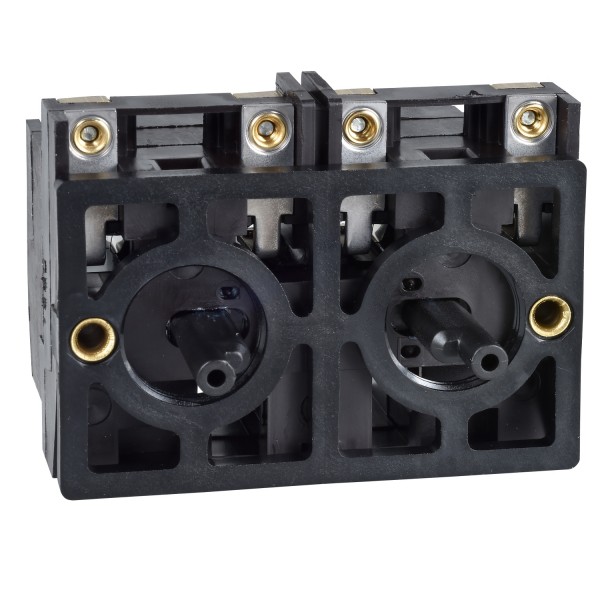

PENDANT STATION CONTACT 600VAC 10A XE

Ülevaaded: 0

Tootekood: XESD1191

Quick Overview

Saadavus: Tellimisel

58,77 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Contact block
component name
XESD
electrical circuit type
Power circuit
contact block application
Single speed
contact block type
Double
type of operator
2 spring return
product compatibility
XACB
mechanical interlocking
With mechanical interlocking
contacts type and composition
2 NO
poles description
2-pole
mounting of block
Front mounting
contact operation
Snap action
Complementary
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
horizontal fixing centres
40 mm
mechanical durability
500000 cycles
1000000 cycles
[Ithe] conventional enclosed thermal current
12 A
[Ui] rated insulation voltage
600 VCSA
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
operating force
17 N
short-circuit protection
10 A fuse protection cartridge aM
rated operational power in W
2200 W AC-3 240 V IEC 60947-3 appendix A
2200 W AC-4 400 V IEC 60947-3 appendix A
rated power in hp
2 hp 240 V, CSA
3 hp 600 V, CSA
5 hp 400 V, CSA
electrical durability
300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
300000 cycles AC-4, 2200 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
500000 cycles AC-3, 1500 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
500000 cycles AC-4, 1500 W 240 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
800000 cycles AC-3, 1500 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
800000 cycles AC-4, 1500 W 400 V 10 cyc/mn 0,4 IEC 60947-3 appendix A
terminals description ISO n°1
(23-24)NO
(13-14)NO
B
terminals description ISO n°2
(43-44)NO
(33-34)NO
B
terminal identifier
(11-12)NC
(13-14)NO
Environment
standards
EN 60947-3
CSA C22.2 No 14
IEC 60947-3
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
shock resistance
100 gn IEC 60068-2-27
electrical shock protection class
Class II IEC 61140
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
