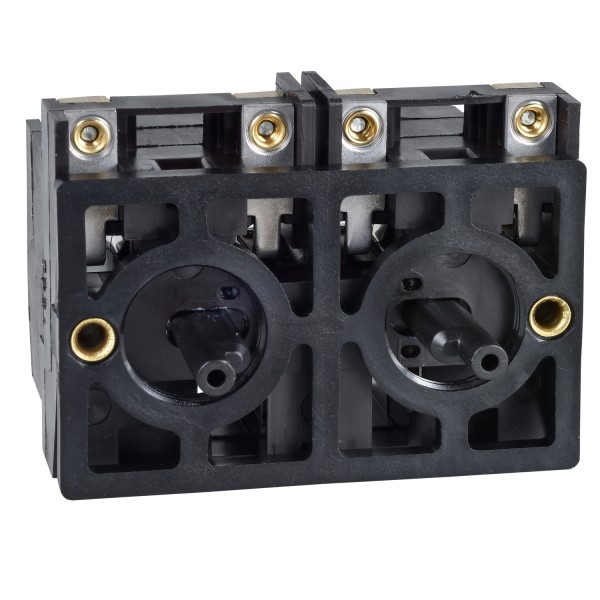

PENDANT STATION CONTACT 600VAC 10A XE

Ülevaaded: 0

Tootekood: XESD1281

Quick Overview

Saadavus: Tellimisel

49,57 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Contact block
component name
XESD
electrical circuit type
Control circuit
contact block application
2-speed
contact block type
Double
type of operator
2 spring return
product compatibility
XACB
XACM
mechanical interlocking
With mechanical interlocking
contacts type and composition
1 C/O + 1 NO
mounting of block
Front mounting
contact operation
Staggered
Snap action
Complementary
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
mechanical durability
1000000 cycles
contact code designation
A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
Q300 DC-13, Ue = 250 V, Ie = 0,27 A IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
500 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
maximum resistance across terminals
25 MOhm
operating force
15 N
25 N
short-circuit protection
10 A fuse protection cartridge gG
rated operational power in W
140 W DC-13 1000000 cycles 60 cyc/mn 24 V 0,5 inductive IEC 60947-5-1 appendix C
140 W DC-13 1000000 cycles 60 cyc/mn 48 V 0,5 inductive IEC 60947-5-1 appendix C
95 W DC-13 1000000 cycles 60 cyc/mn 120 V 0,5 inductive IEC 60947-5-1 appendix C
rated operational power in VA
100 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0,5 inductive
450 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0,5 inductive
50 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0,5 inductive
750 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0,5 inductive
terminals description ISO n°1
B
(33-34)NO_CL
(13-14-11-12)OF
terminals description ISO n°2
(43-44)NO_CL
(23-24-21-22)OF
B
terminal identifier
(13-14)NO
(11-12)NC
net weight
0,19 kg
Environment
standards
CSA C22.2 No 14
IEC 60947-5-1
EN 60947-5-1
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn 10…500 Hz)IEC 60068-2-6
shock resistance
100 gn IEC 60068-2-27
electrical shock protection class
Class II IEC 61140
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Mürgiste raskemetallideta
Jah
Elavhõbedavaba
Jah
RoHS eranditeave
Hiina EoHS regulatsioon
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
Contractual warranty
Garantii
18 months
