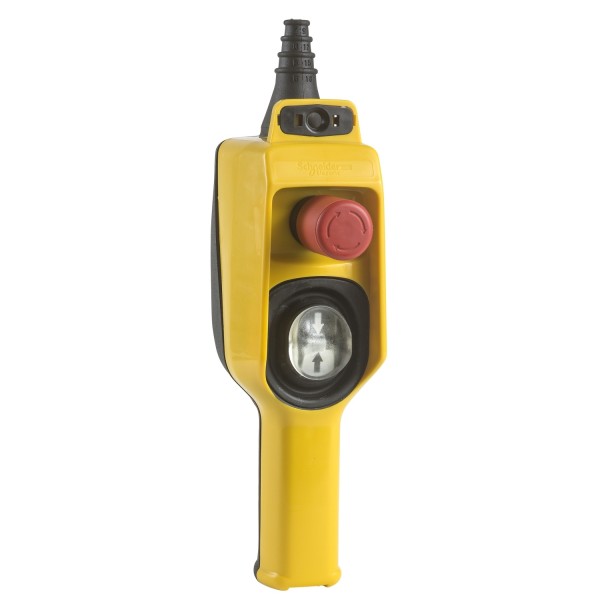

pendant station XAC-D - 1 rocker lever 1 Emergency stop

Ülevaaded: 0

Tootekood: XACD22A0105

Quick Overview

Saadavus: Tellimisel

139,11 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Pendant control station
device short name
XACD
Complementary
control station type
Double insulated
enclosure material
Polypropylene
control type
Intuitive
electrical circuit type
Control circuit
enclosure type
Complete ready for use
control station application
Control of single speed hoist motor
motor starter type
Reversing
control station composition
1 2-directional button + 1 emergency stop
control button type
Stop push-button Ø 30 mm 1 NC latching
First direction button 1 NC + 1 NO raise, slow
Second direction button 1 NC + 1 NO lower, slow
product compatibility
ZB2BE102 for emergency stop
ZB2BE102 + ZB2BE101 for each direction
mechanical interlocking
With mechanical interlocking
control station colour
Yellow
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
standards
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
EN/IEC 60204-32
protective treatment
TH
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance
70 gn conforming to IEC 60068-2-27
overvoltage category
Class II conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK08 conforming to EN 50102
mechanical durability
3000000 cycles
cable entry
Rubber sleeve with stepped entry 7…18 mm
contact code designation
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
contact operation
Slow-break
maximum resistance across terminals
25 MOhm
operating force
16 N
short-circuit protection
10 A fuse protection by cartridge fuse type gG
rated operational power in W
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
terminals description ISO n°1
(13-14)NO
(11-12)NC
terminals description ISO n°2
(11-12)NC
terminal identifier
(11-12)NC
(13-14)NO
net weight
0.425 kg
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
