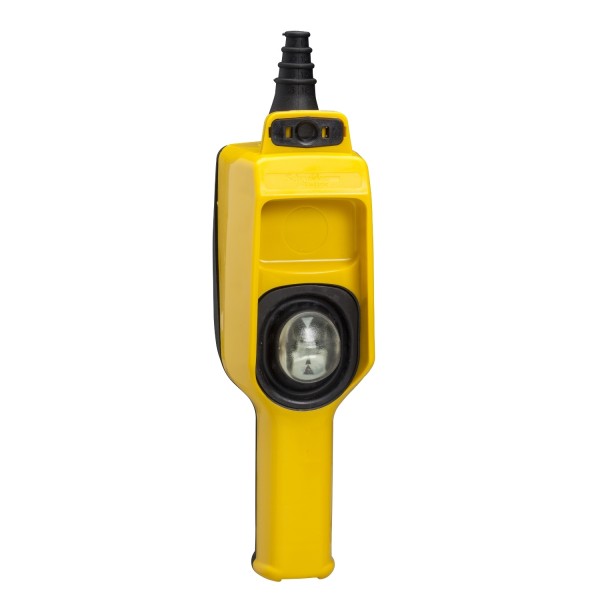

pendant station XAC-D - 1 rocker lever

Ülevaaded: 0

Tootekood: XACD21P2241

Quick Overview

Saadavus: Tellimisel

266,30 € (ilma KM-ta)

Details

Main
range of product
Harmony XAC
product or component type
Pendant control station
device short name
XACD
Complementary
control station type
Double insulated
enclosure material
Polypropylene
control type
Intuitive
electrical circuit type
Power circuit
enclosure type
Complete ready for use
control station application
Control of 2-speed hoist motor
motor starter type
Reversing
control station composition
1 2-directional button
control button type
First direction button 1 NO (brake) 2-pole raise, slow-fast
Second direction button 1 NO (brake) 2-pole lower, slow-fast
product compatibility
XEDS2241 for reversing operation
mechanical interlocking
With mechanical interlocking
control station colour
Yellow
connections - terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end
Screw clamp terminals, 2 x 1.5 mm² with or without cable end
standards
UL 508
EN/IEC 60204-32
CSA C22.2 No 14
EN/IEC 60947-5-1
protective treatment
TH
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
shock resistance
70 gn conforming to IEC 60068-2-27
overvoltage category
Class II conforming to IEC 61140
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK08 conforming to EN 50102
mechanical durability
3000000 cycles
cable entry
Rubber sleeve with stepped entry 7…18 mm
[Ithe] conventional enclosed thermal current
16 A
[Ui] rated insulation voltage
500 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-1
contact operation
Snap action
operating force
31 N
short-circuit protection
6 A fuse protection by cartridge fuse type aM
rated operational power in W
1100 W AC-3 at 400 V conforming to IEC 60947-3 appendix A
1100 W AC-4 at 400 V conforming to IEC 60947-3 appendix A
electrical durability
1000000 cycles AC-3, 1100 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
1000000 cycles AC-4, 1100 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A
terminals description ISO n°1
(1-2)P
(R3-R4)RP
(13-14)NO
(3-4)P
(9-10)P
(7-8)P
(R1-R2)RP
(15-16)NO
(5-6)P
(11-12)P
terminal identifier
(11-12)NC
(13-14)NO
net weight
0.355 kg
Offer Sustainability
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty
Warranty
18 months
