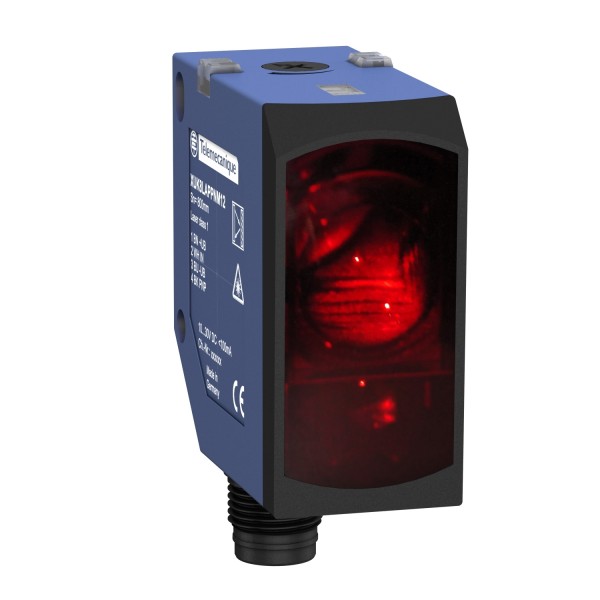

photo-electric laser sensor -XUK -background suppression -Sn 0,8m -10..30VDC-M12

Details

Main
range of product	OsiSense XU
series name	Application assembly Application material handling
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse with background suppression
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	4-wire
discrete output type	PNP
discrete output function	1 NO or 1 NC programmable
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Red laser diffuse with background suppression class 1
[Sn] nominal sensing distance	0.8 m diffuse with background suppression

Complementary
enclosure material	ABS/PC
lens material	PMMA
maximum sensing distance	0.8 m diffuse with background suppression
output type	Solid state
add on input	External teach
status LED	1 LED (yellow) for output state 1 LED (green/yellow) for supply on/output state
[Us] rated supply voltage	24 V DC with reverse polarity protection
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<2 V
current consumption	<= 30 mA no-load
maximum delay first up	300 ms
maximum delay response	0.5 ms
maximum delay recovery	0.5 ms
setting-up	Using teach button or remote teaching
depth	50 mm
height	50 mm
width	23 mm
net weight	0.035 kg

Environment
product certifications	CULus Ecolab CE
ambient air temperature for operation	-20…50 °C, UL certified -20…60 °C discrete output
ambient air temperature for storage	-20…80 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 conforming to IEC 60529 IP69K conforming to DIN 40050

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
