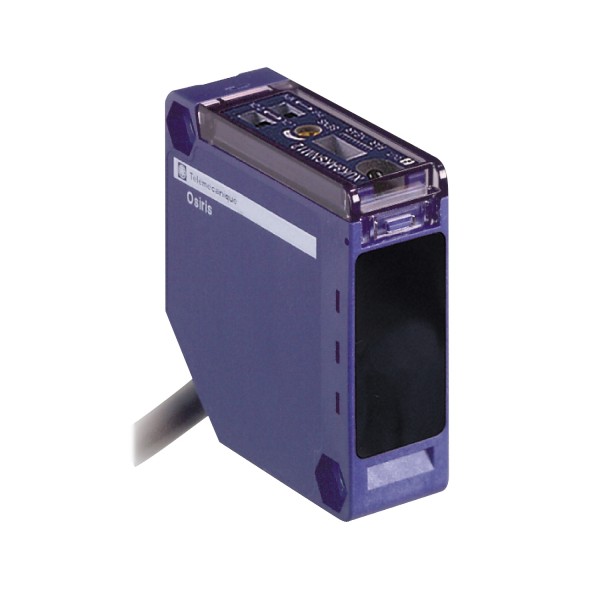

photo-electric laser sensor - XUK - BGS - Sn 1m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse with background suppression
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP or NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared laser, modulated diffuse with background suppression class 1
[Sn] nominal sensing distance	1 m diffuse with background suppression

Complementary
enclosure material	PC
lens material	PMMA
maximum sensing distance	1 m diffuse with background suppression
minimum object diameter for detection	2 mm
output type	Solid state
add on output	Without, <= 50 mA overload and short-circuit protection
cable composition	5 x 0.34 mm²
wire insulation material	PVC
cable outer diameter	6 mm
status LED	1 LED green)supply on 1 LED yellow)output state 1 LED red)alignment assistance
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	35 mA no-load
maximum delay first up	300 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Sensitivity adjustment by potentiometer
depth	50 mm
height	50 mm
width	18 mm
net weight	0,19 kg
kit composition	With XUZA51 bracket fixing

Environment
product certifications	CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-30…70 °C
vibration resistance	7 gn 10…55 Hz) IEC 60068-2-6
shock resistance	10 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
