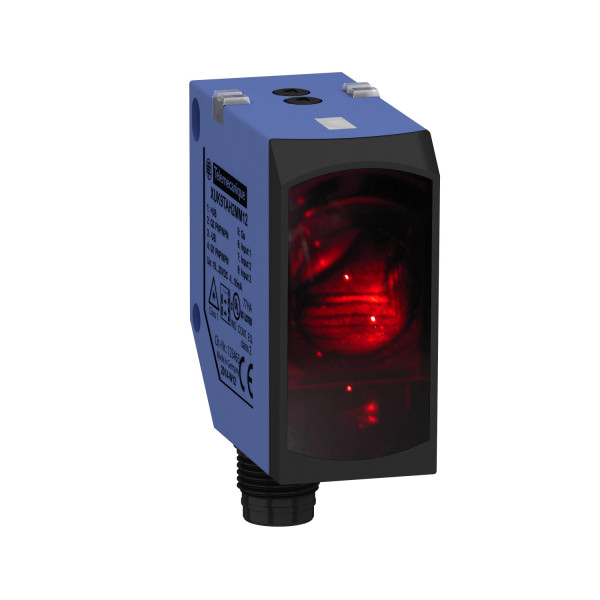

photo-electric laser sensor - XUK - reflex - Sn 70m - 2Q 1Qa 3IN

Details

Main
range of product	OsiSense XU
series name	Application hoisting
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Polarised reflex
material	Plastic
type of output signal	Analogue + discrete
supply circuit type	DC
wiring technique	8-wire
discrete output type	PNP or NPN
discrete output function	1 NO or 1 NC programmable
analogue output range	4...20 mA
electrical connection	1 male connector M12, 8 pins
product specific application	Distance measurement on reflector
emission	Red laser polarised reflex class 1 conforming to IEC 60825-1
[Sn] nominal sensing distance	70 m polarised reflex need reflector XUZC250

Complementary
enclosure material	ABS/PC
lens material	PMMA
maximum sensing distance	70 m polarised reflex need reflector XUZC250
output type	Solid state Analog
output function governance	Light or dark programmable
add on output	With alarm output
add on input	Test by emission breaking
status LED	1 LED (yellow) for output state 1 LED (green/yellow) for supply on/output state
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 1.5 kHz
maximum voltage drop	<2 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	300 ms
maximum delay response	10 ms
maximum delay recovery	10 ms
setting-up	Using teach button or remote teaching
depth	50 mm
height	50 mm
width	23 mm
net weight	0.035 kg

Environment
product certifications	CE Ecolab CULus
ambient air temperature for operation	-20…50 °C, UL certified -30…50 °C
ambient air temperature for storage	-30…60 °C
vibration resistance	7 gn (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	10 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 conforming to IEC 60529 IP69K conforming to DIN 40050

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
