Details
Characteristics

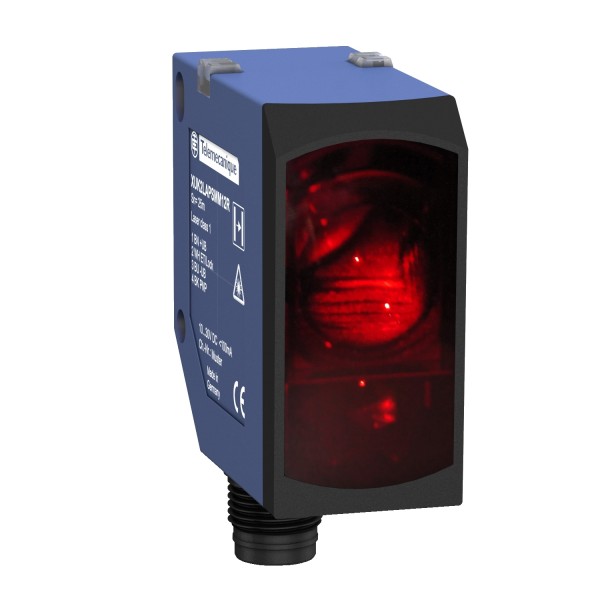

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application assemblyApplication material handling | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUK | |
| sensor design | Compact 50 x 50 | |
| detection system | Thru beam | |
| material | Plastic | |
| type of output signal | Discrete | |
| supply circuit type | DC | |
| wiring technique | 4-wire | |
| electrical connection | 1 male connector M12, 4 pins | |
| product specific application | - | |
| emission | Red laser thru beam class 1 | |
| [Sn] nominal sensing distance | 25 m thru beam need receiver XUK2LAPSMM12R |
| enclosure material | ABS/PC | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 30 m thru beam | |
| add on output | Without | |
| add on input | Test | |
| status LED | 1 LED (green) for supply | |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| maximum voltage drop | <2.4 V (closed state) | |
| current consumption | <= 30 mA no-load | |
| depth | 50 mm | |
| height | 50 mm | |
| width | 23 mm | |
| net weight | 0.035 kg |
| product certifications | EcolabCECULus | |
|---|---|---|
| ambient air temperature for operation | -20…60 °C-20…50 °C, UL certified | |
| ambient air temperature for storage | -20…80 °C | |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60947-5-2 | |
| IP degree of protection | IP67 conforming to IEC 60529IP69K conforming to DIN 40050 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
