photo-electric sensor - XU1 - reflex - 90° - Sn 4m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application food and beverage
electronic sensor type	Photo-electric sensor
sensor name	XU1
sensor design	Cylindrical M18
detection system	Reflex
material	Stainless steel
line of sight type	90° lateral
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared reflex
[Sn] nominal sensing distance	4 m reflex need reflector XUZC50

Complementary
enclosure material	Stainless steel : 304 CU
lens material	PMMA
maximum sensing distance	5,5 m with reflector 50 x 50 mm
output type	Solid state
add on output	Without
add on input	Programmation
cable composition	4 x 0.34 mm²
wire insulation material	PvR
cable outer diameter	4,2 mm
status LED	1 LED green)supply on 1 LED yellow)output state
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 500 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	<= 30 mA no-load
maximum delay first up	15 ms
maximum delay response	1 ms
maximum delay recovery	1 ms
setting-up	Without sensitivity adjustment
diameter	18 mm
length	78 mm
net weight	0,155 kg

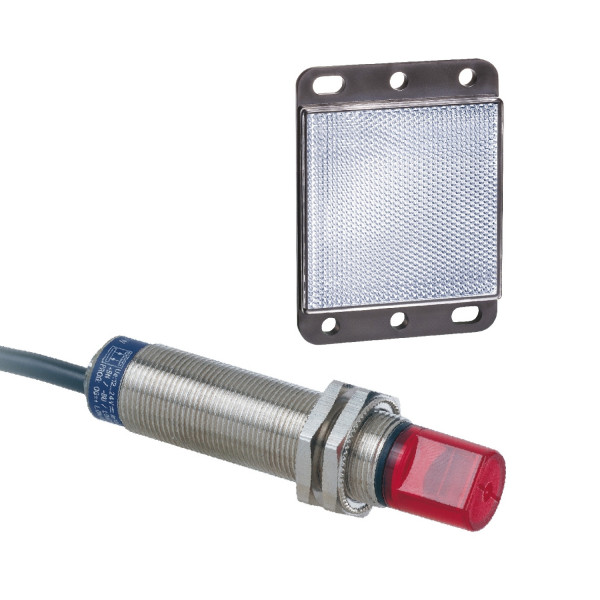

kit composition	Sensor Reflector XUZC50

Environment
product certifications	CE UL CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	25 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP67 IEC 60529

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ei rakendu, ei jää EL-i RoHS seadustega määratud piiridesse
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
