Details
Characteristics
| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose single mode | |

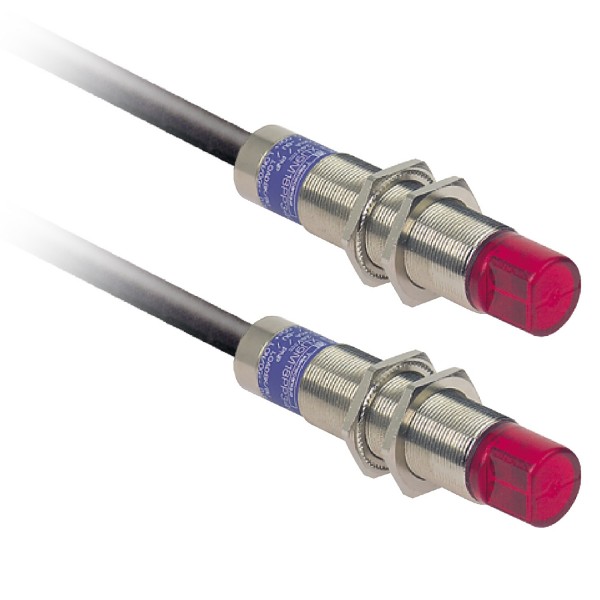

| electronic sensor type | Photo-electric sensor receiver | |
| sensor name | XU2 | |
| sensor design | Cylindrical M18 | |
| detection system | Thru beam | |
| material | Metal | |
| line of sight type | 90° lateral | |
| type of output signal | Discrete | |
| supply circuit type | AC/DC | |
| wiring technique | 2-wire | |
| discrete output function | 1 NO | |
| electrical connection | Cable | |
| cable length | 2 m | |
| emission | Infrared thru beam | |
| [Sn] nominal sensing distance | 15 m thru beam need a transmitter |
| enclosure material | Nickel plated brass | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 20 m | |
| output type | Solid state | |
| add on output | Without | |
| wire insulation material | PvR | |
| status LED | Instability: 1 LED (red)Output state: 1 LED (yellow) | |
| [Us] rated supply voltage | 24...240 V AC/DC | |
| supply voltage limits | 20…264 V AC/DC | |
| maximum residual current | 1.5 mA open state | |
| switching capacity in mA | 10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load) | |
| switching frequency | <= 25 Hz | |
| maximum voltage drop | <6 V (closed state) | |
| maximum delay first up | 300 ms | |
| maximum delay response | 20 ms | |
| maximum delay recovery | 20 ms | |
| setting-up | Sensitivity adjustment | |
| diameter | 18 mm | |
| length | 97 mm |
| product certifications | CEULCSA | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
