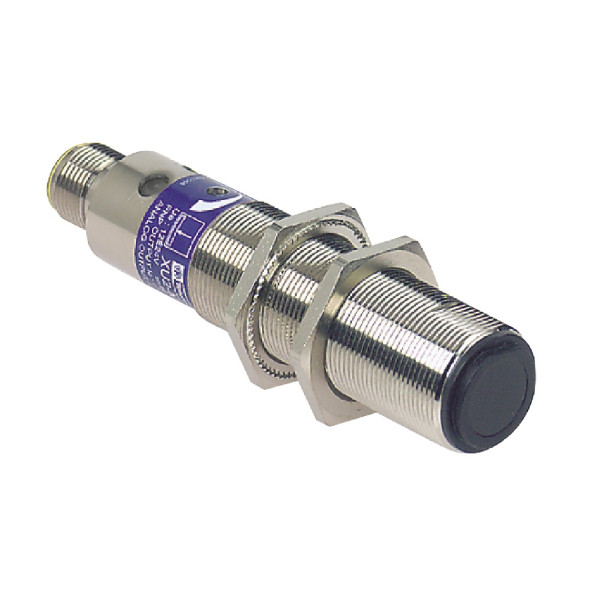

photo-electric sensor - XU2 - thru beam - high gain - Sn 50m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application material handling
electronic sensor type	Photo-electric sensor
sensor name	XU2
sensor design	Cylindrical M18
detection system	Thru beam
material	Metal
line of sight type	Axial
type of output signal	Discrete Analogue
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NO
analogue output range	4...20 mA
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	50 m thru beam

Complementary
enclosure material	Nickel plated brass
lens material	PMMA
maximum sensing distance	70 m
output type	Solid state
add on output	With analogue output
add on input	Breaking test (transmitter)
status LED	1 LED green)supply on 1 LED yellow)operation
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 30 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	<= 55 mA no-load
maximum delay first up	50 ms
maximum delay response	15 ms
maximum delay recovery	15 ms
setting-up	Sensitivity adjustment
diameter	18 mm
length	95 mm
net weight	0,155 kg
kit composition	Transmitter + receiver

Environment
product certifications	CSA CE UL
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	25 gn +/- 2 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP67 IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
