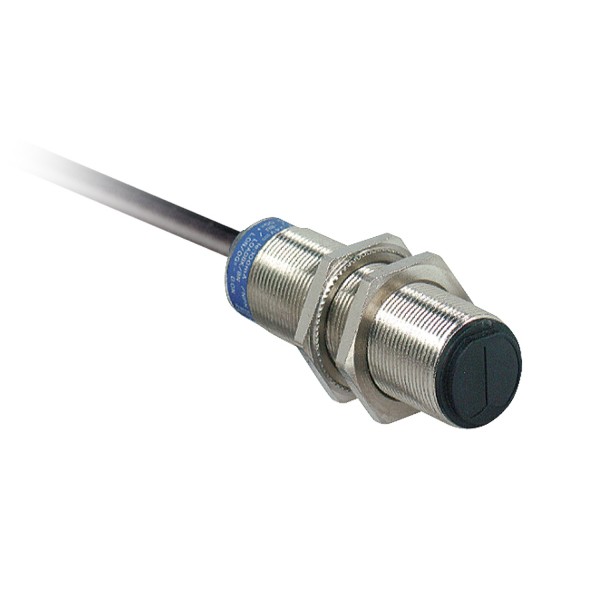

photo-electric sensor - XU2 - thru beam - Sn 15m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XU2
sensor design	Cylindrical M18
detection system	Thru beam
material	Metal
line of sight type	Axial
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	2-wire
discrete output function	1 NC
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	15 m thru beam

Complementary
enclosure material	Nickel plated brass
lens material	PMMA
maximum sensing distance	20 m
output type	Solid state
add on output	Without
wire insulation material	PvR
status LED	1 LED yellow)output state 1 LED red)instability
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC/DC
maximum residual current	1,5 mA open state
switching capacity in mA	10...200 mA to be used with 0.4 A quick-blow fuse in series with the load)
switching frequency	<= 25 Hz
maximum voltage drop	<6 V closed state)
maximum delay first up	300 ms
maximum delay response	20 ms
maximum delay recovery	20 ms
setting-up	Sensitivity adjustment
diameter	18 mm
length	82 mm
net weight	0,285 kg
kit composition	Transmitter + receiver XU2M18MC230T + XU2M18MB230R

Environment
product certifications	CE UL CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP67 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
