Details
Müüdavad tooted

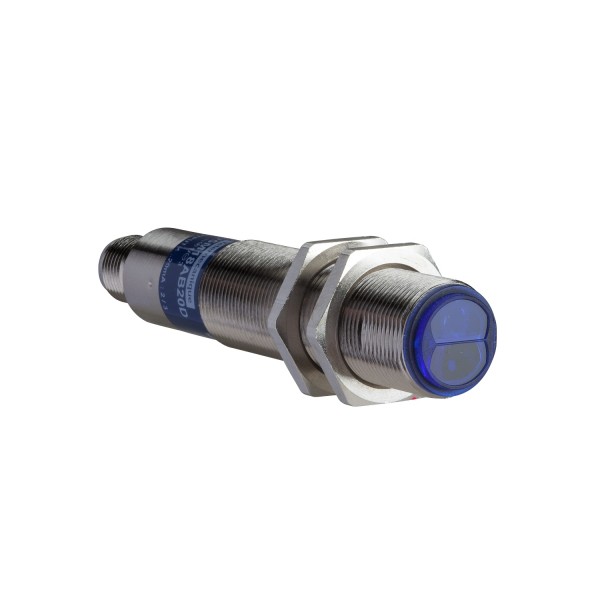

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application material handling | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XU5 | |
| sensor design | Cylindrical M18 | |
| detection system | Diffuse | |
| material | Metal | |
| line of sight type | Axial | |
| type of output signal | Analogue | |
| supply circuit type | DC | |
| wiring technique | 3-wire | |
| discrete output type | PNP | |
| analogue output range | 4...20 mA | |
| electrical connection | 1 male connector M12, 4 pins | |
| product specific application | - | |
| emission | Infrared diffuse | |
| [Sn] nominal sensing distance | 0,05…0,4 m diffuse |
| enclosure material | Nickel plated brass | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 0,4 m | |
| add on output | With analogue output | |
| status LED | 1 LED green)output state | |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| switching capacity in mA | 4...20 mA | |
| switching frequency | <= 20 Hz | |
| current consumption | <= 30 mA no-load | |
| maximum delay first up | 50 ms | |
| setting-up | Sensitivity adjustment with potentiometer | |
| diameter | 18 mm | |
| length | 95 mm | |
| net weight | 0,075 kg |
| product certifications | CEULCSA | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 25 gn +/- 2 mm 10…55 Hz) IEC 60068-2-6 | |
| shock resistance | 30 gn 11 ms) IEC 60068-2-27 | |
| IP degree of protection | IP67 IEC 60529 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil |
| Garantii | 18 months |
|---|
